Product Specifications
| Manufacturer Part Number | 00034449 |
| Body Diameter 1 (Decimal Inch) | 0.630" |
| Body Diameter 1 (mm) | 16.00mm |
| Body Diameter 2 (Decimal Inch) | 0.816" |
| Body Diameter 2 (mm) | 20.72mm |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Connection Bore Diameter (mm) | 8.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Body Length (Decimal Inch) | 2.398" |
| Body Length (mm) | 60.90mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Minimum Functional Length (Decimal Inch) | 1.476" |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.00mm |
| Clamping Length (Decimal Inch) | 1.181" |
| Clamping Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 5.843" |
| Overall Length (mm) | 148.40mm |
| Connection Bore Depth (mm) | 44.00mm |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

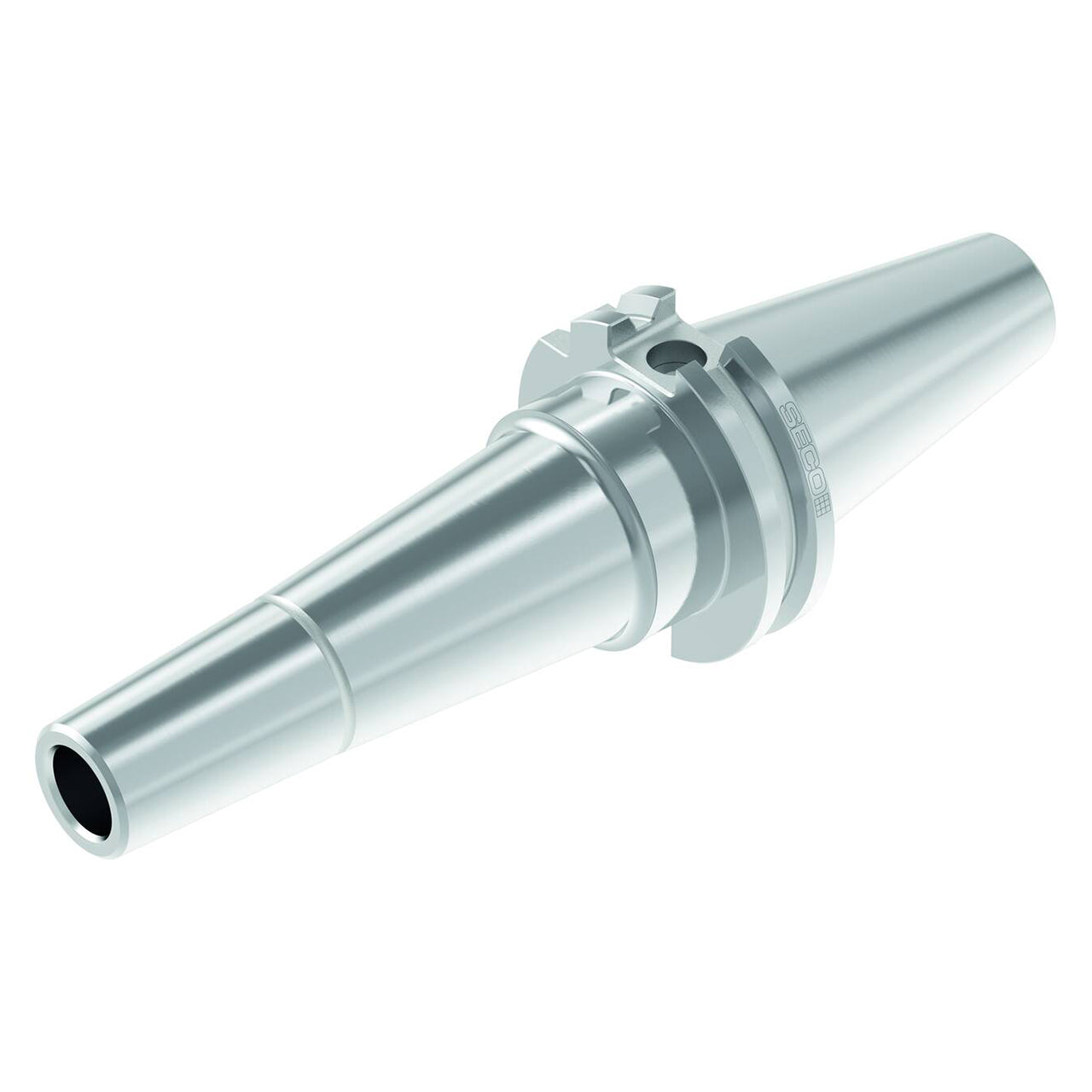

| Product Type | Shrink-Fit Tool Holder |
