Product Specifications
| Manufacturer Part Number | 00034386 |
| Body Diameter 1 (Decimal Inch) | 0.394" |
| Body Diameter 1 (mm) | 10.00mm |
| Body Diameter 2 (Decimal Inch) | 0.759" |
| Body Diameter 2 (mm) | 19.27mm |
| Connection Bore Diameter (Decimal Inch) | 0.158" |
| Connection Bore Diameter (mm) | 4.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Minimum Connection Bore Diameter (mm) | 4.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Maximum Connection Bore Diameter (mm) | 4.00mm |
| Body Length (Decimal Inch) | 2.480" |
| Body Length (mm) | 63.00mm |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 2.953" |
| Functional Length (mm) | 75.00mm |
| Minimum Functional Length (Decimal Inch) | 2.894" |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Clamping Length (Decimal Inch) | 0.591" |
| Clamping Length (mm) | 15.00mm |
| Overall Length (Decimal Inch) | 6.118" |
| Overall Length (mm) | 155.40mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

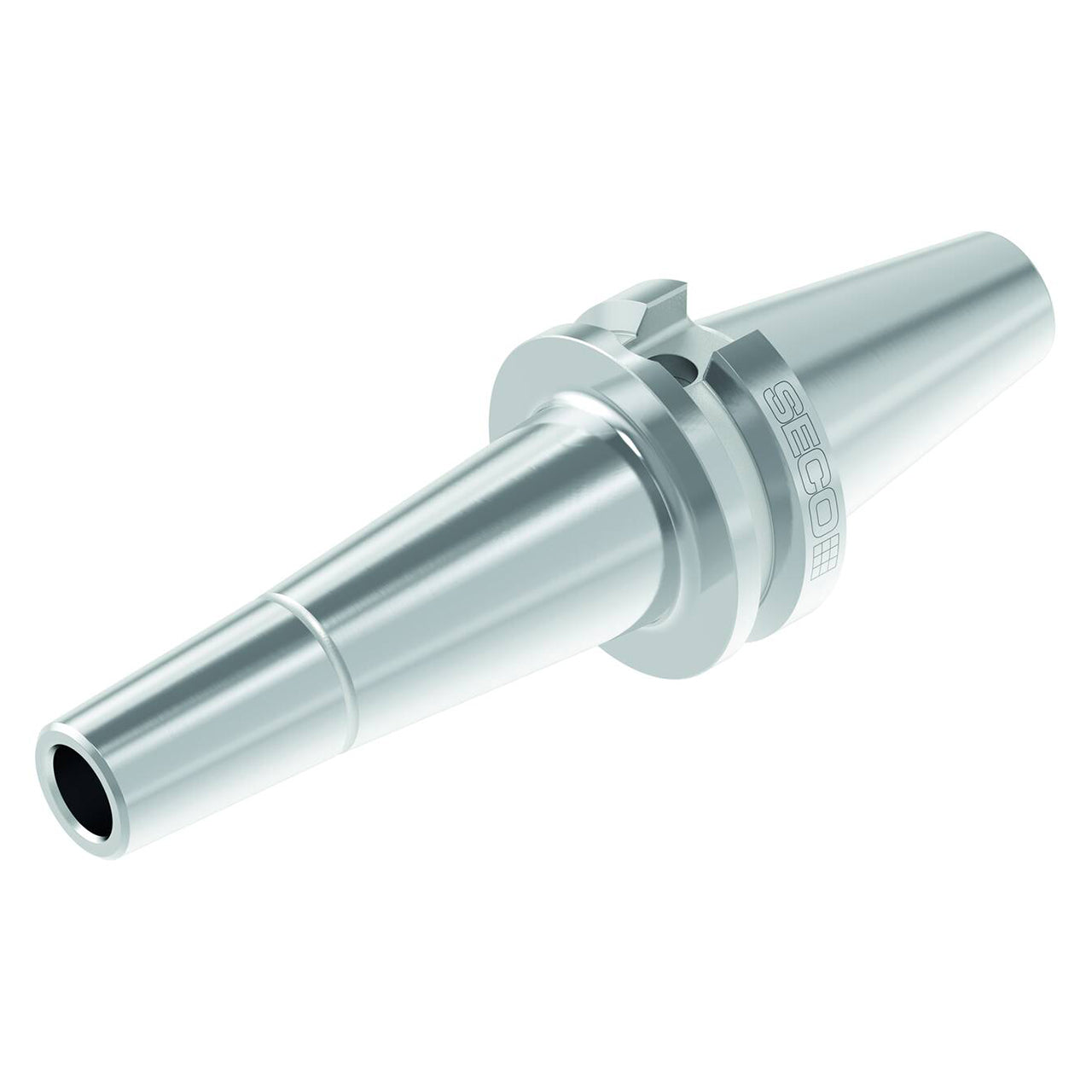

| Product Type | Shrink-Fit Tool Holder |
