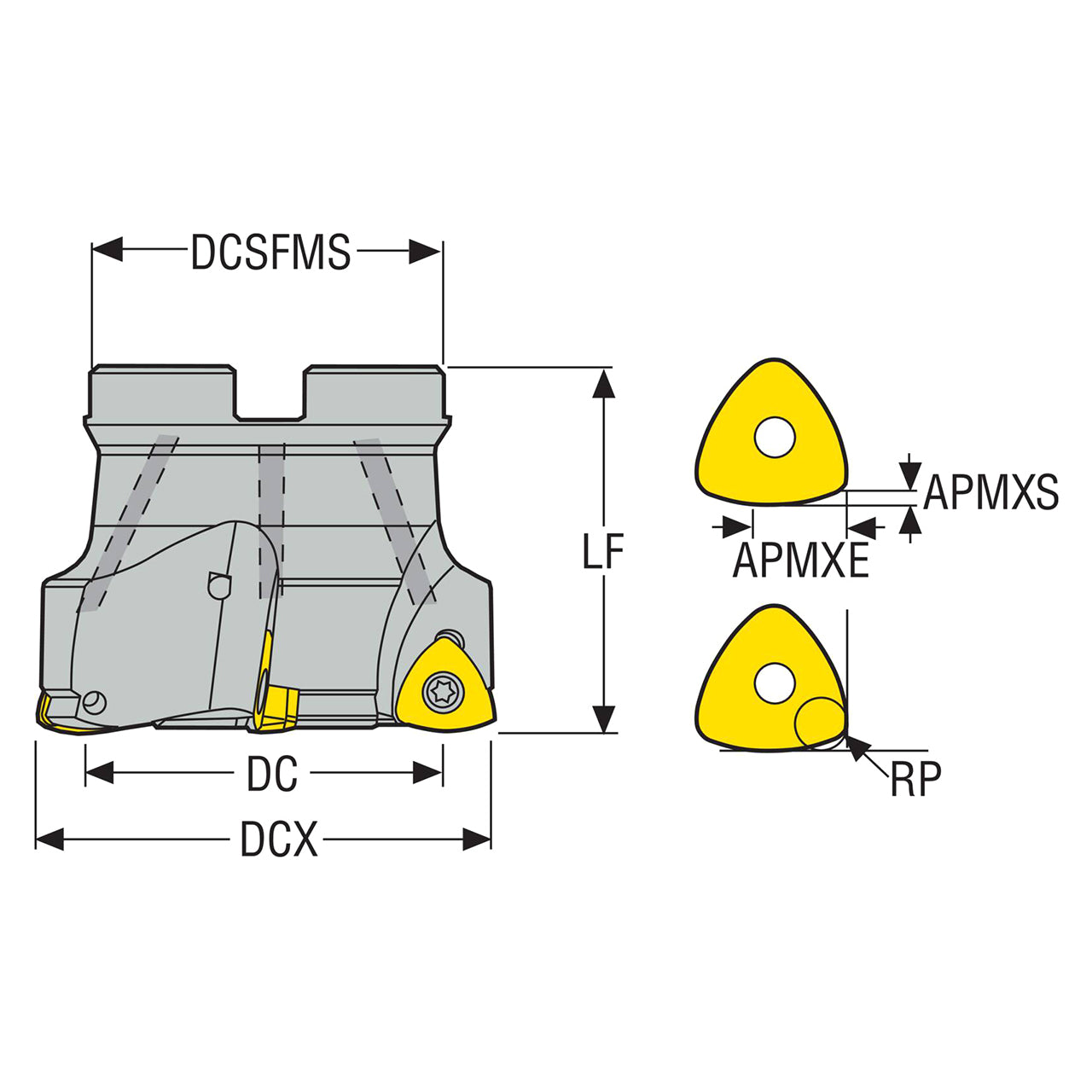

Product Specifications
| Manufacturer Part Number | 00030717 |
| Cutting Diameter (mm) | 29.20mm |
| Connection Bore Diameter (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 69.20mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.00mm |
| Depth of Key Way (mm) | 5.60mm |
| Keyway Width (mm) | 8.40mm |
| Programming Radius (mm) | 1.75mm |
| Uncut Thickness (mm) | 0.61 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 2.47 Degree |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Arbor |

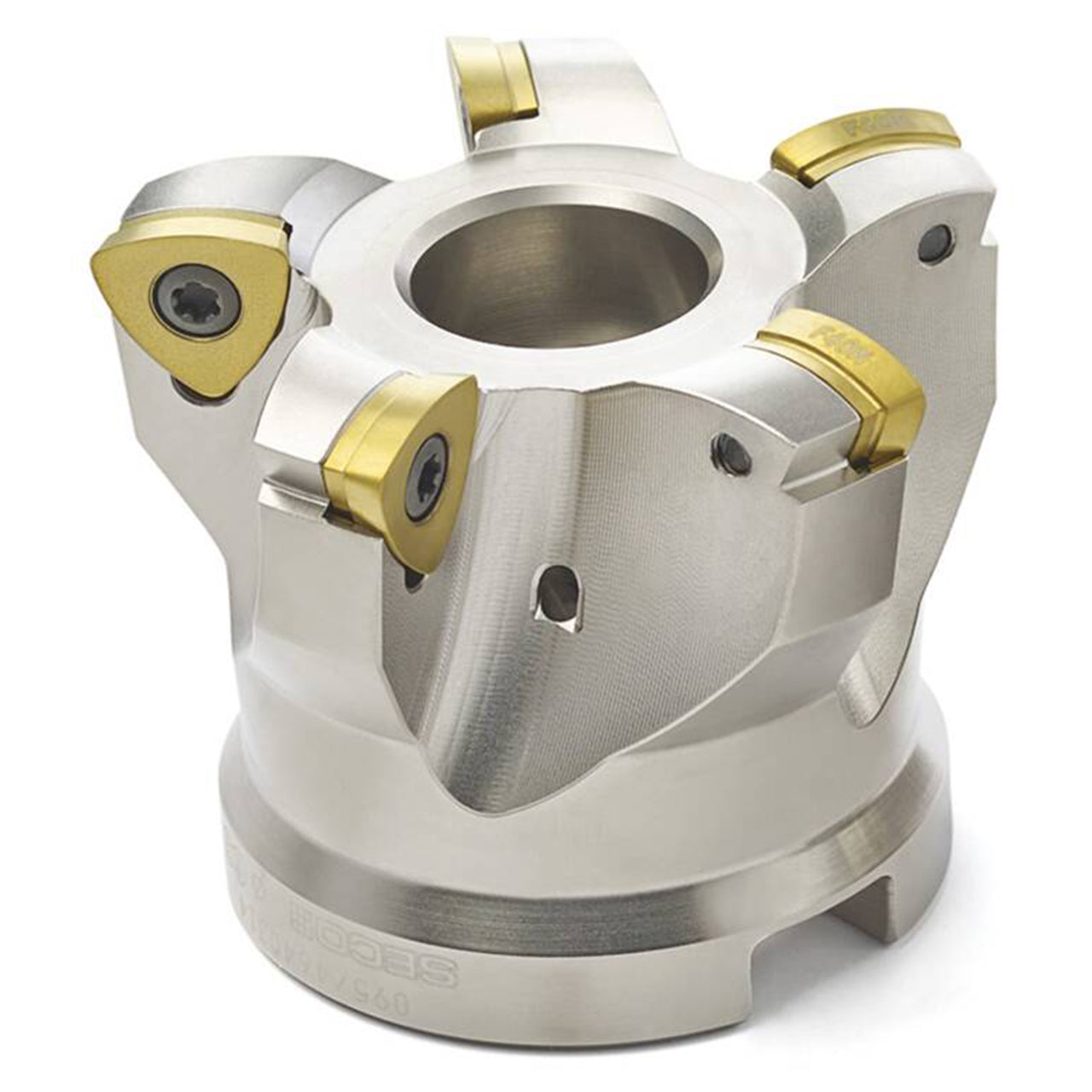

| Product Type | High Feed Trigon Shape Insert |
