Product Specifications
| Manufacturer Part Number | 00017990 |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Shank Width (Decimal Inch) | 0.433" |
| Shank Width (mm) | 11.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.374" |
| Maximum Cutting Depth (mm) | 9.50mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Cutting Direction | Neutral |
| Insert Clamping System | T |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | O |
| Insert Shape Code | R |
| Shank Type | Blade |

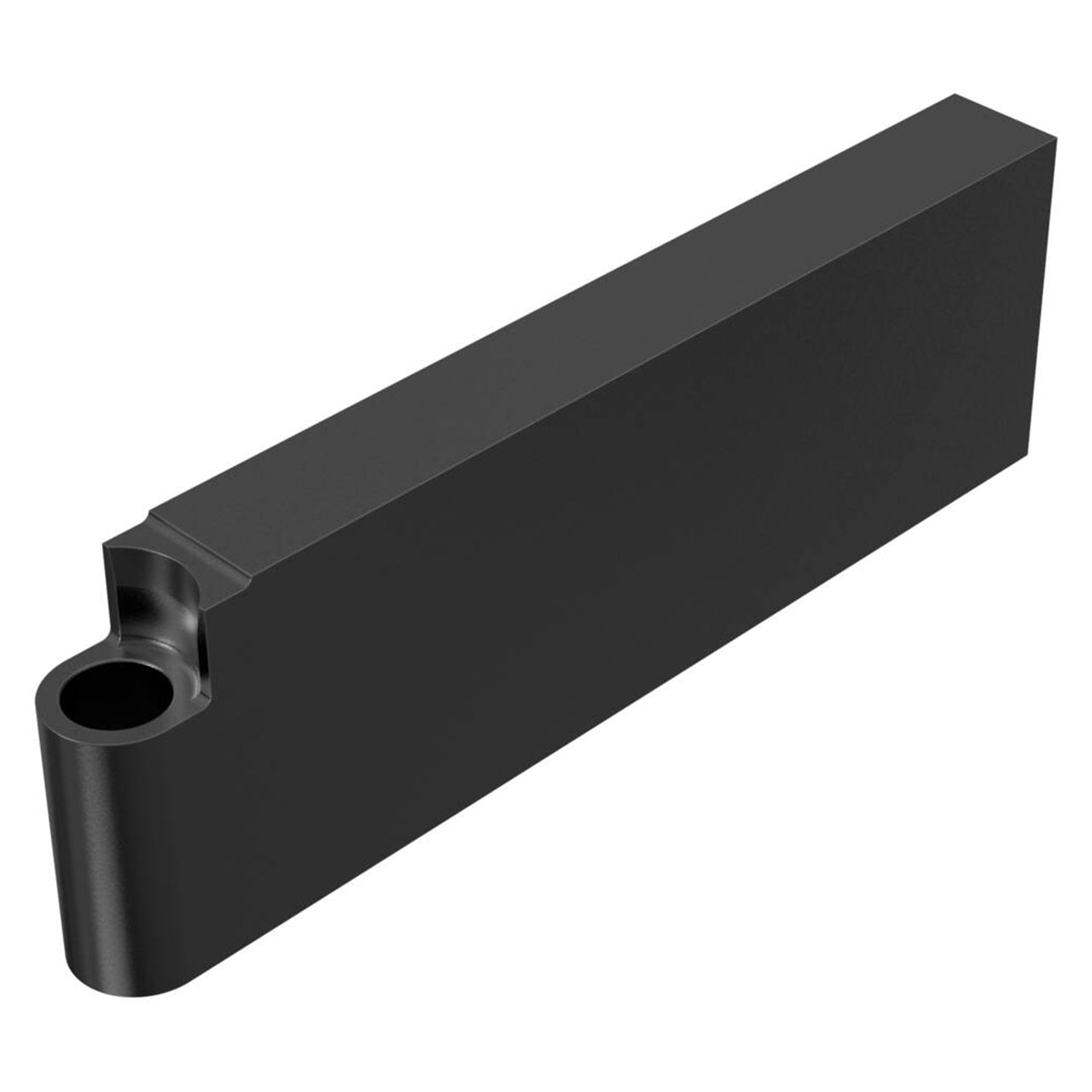

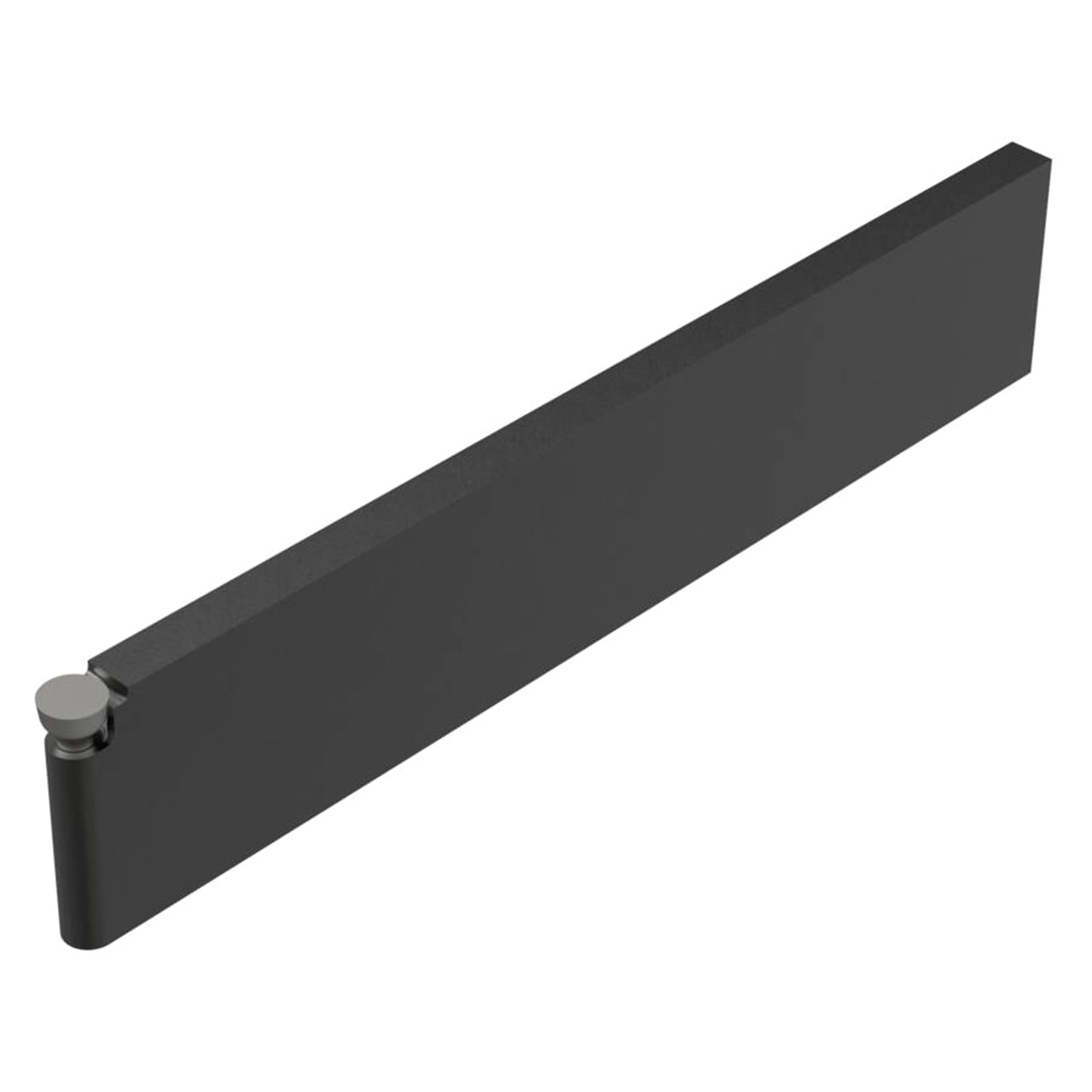

| Product Type | Indexable Turning Toolholder |
