Product Specifications
| Manufacturer Part Number | 00013463 |
| Body Diameter (Decimal Inch) | 1.732" |
| Body Diameter (mm) | 44.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.551" |
| Minimum Connection Bore Diameter (mm) | 14.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.551" |
| Maximum Connection Bore Diameter (mm) | 14.00mm |
| Body Length (Decimal Inch) | 1.319" |
| Body Length (mm) | 33.50mm |
| Functional Length Secondary (Decimal Inch) | 1.476" |
| Functional Length Secondary (mm) | 37.50mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Clamping Length (Decimal Inch) | 1.693" |
| Clamping Length (mm) | 43.00mm |
| Overall Length (Decimal Inch) | 3.858" |
| Overall Length (mm) | 98.00mm |
| Body Half Taper Angle Degree) | 25 Degree |

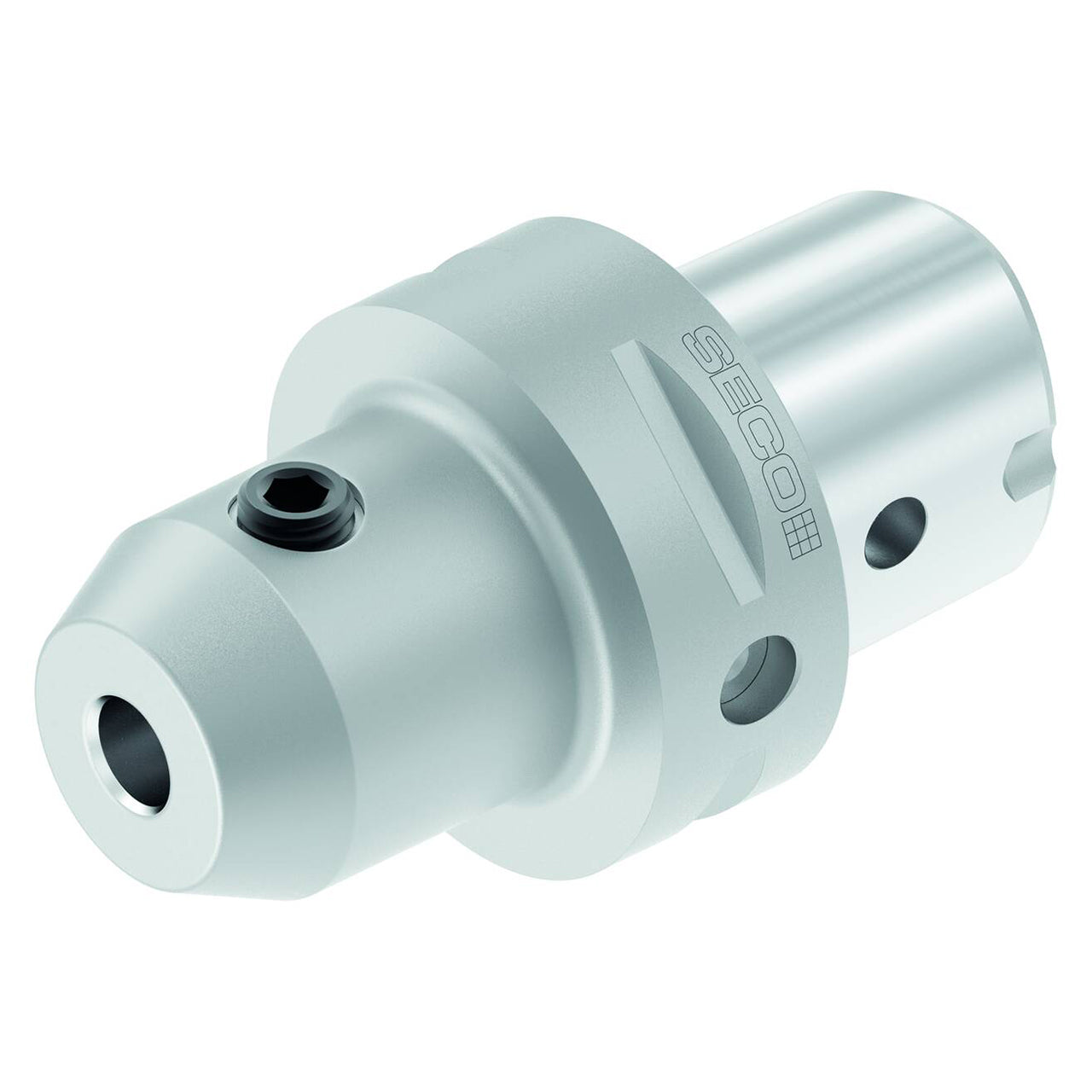

| Product Type | End Mill Holder |
