Product Specifications
| Manufacturer Part Number | 00013378 |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Head Length (Decimal Inch) | 0.850" |
| Head Length (mm) | 21.59mm |
| Shank Length (Decimal Inch) | 3.150" |
| Shank Length (mm) | 80.01mm |
| Shank Width (Decimal Inch) | 0.625" |
| Shank Width (mm) | 15.88mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (mm) | 15.88mm |
| Functional Height (Decimal Inch) | 0.625" |
| Functional Height (mm) | 15.88mm |
| Functional Width (Decimal Inch) | 0.750" |
| Functional Width (mm) | 19.05mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | G |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 120 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Insert Shape Code | T |
| Shank Type | Square shank |

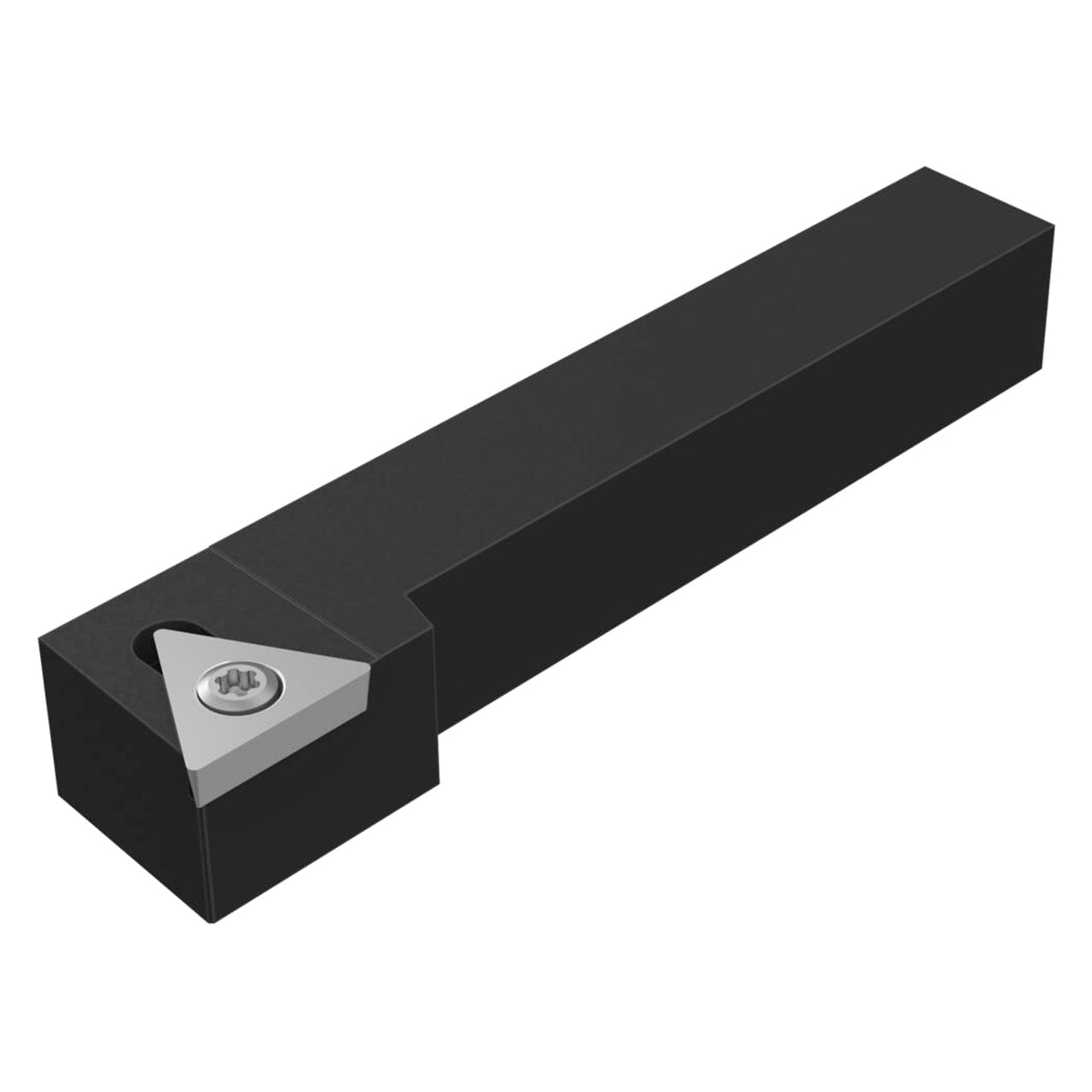

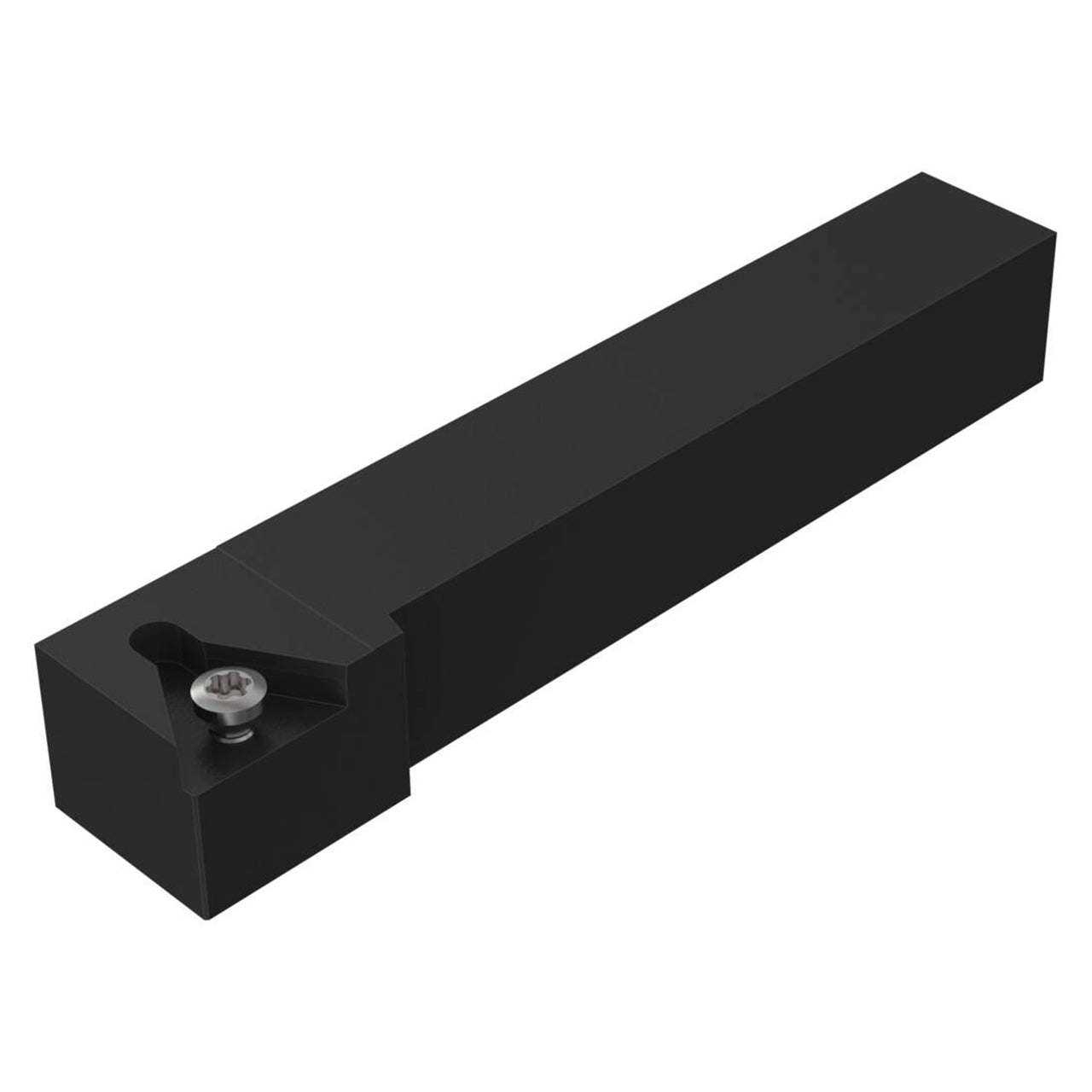

| Product Type | Indexable Turning Toolholder |
