Product Specifications
| Manufacturer Part Number | 00013106 |
| Functional Length (Decimal Inch) | 7.000" |
| Functional Length (mm) | 177.80mm |
| Head Length (Decimal Inch) | 2.010" |
| Head Length (mm) | 51.05mm |
| Shank Width (Decimal Inch) | 1.500" |
| Shank Width (mm) | 38.10mm |
| Maximum Cutting Depth (Decimal Inch) | 2.000" |
| Maximum Cutting Depth (mm) | 50.80mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.500" |
| Height of Tool Holder Shank (mm) | 38.10mm |
| Functional Width (Decimal Inch) | 2.287" |
| Functional Width (mm) | 58.10mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | G |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Insert Shape Code | R |
| Shank Type | Square shank |

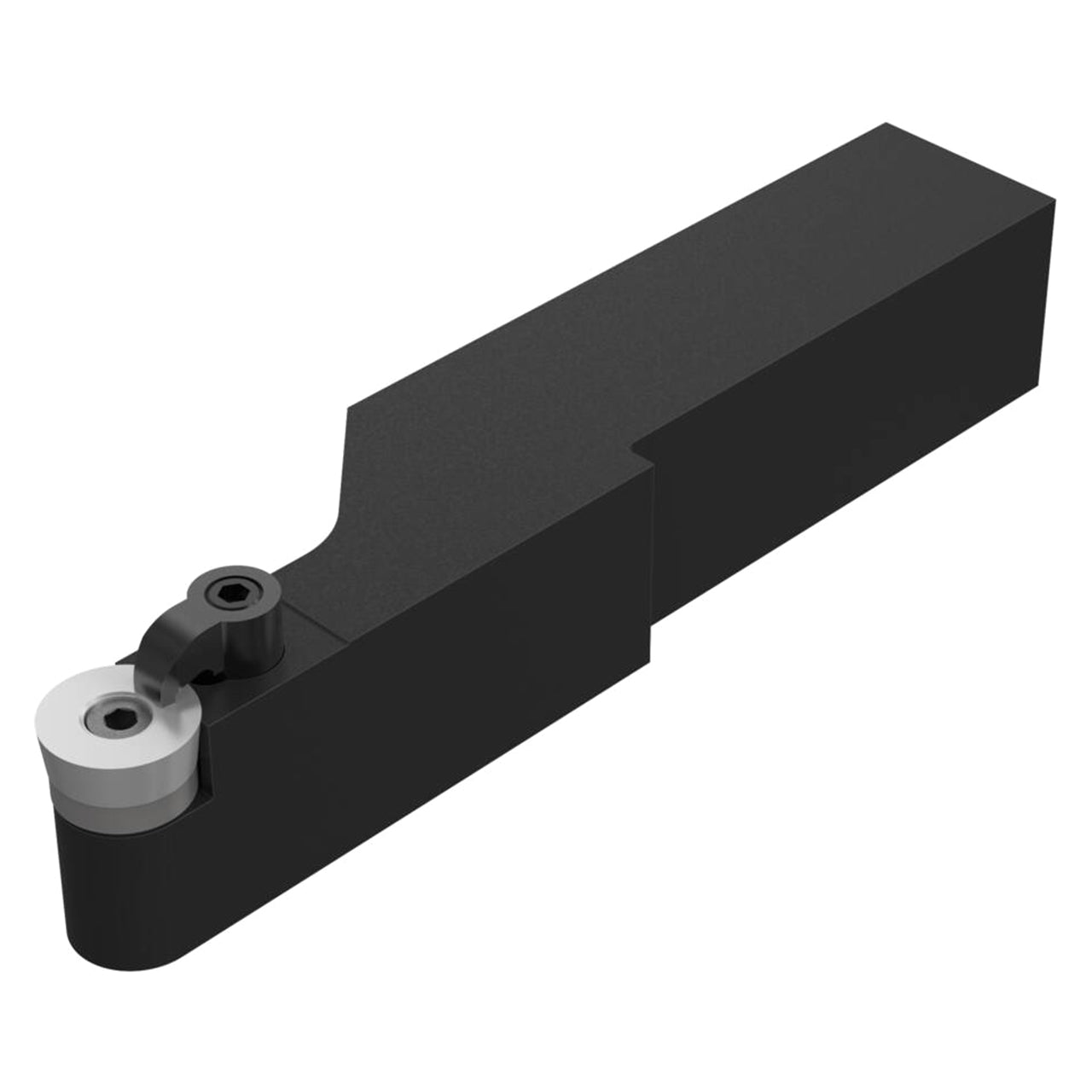

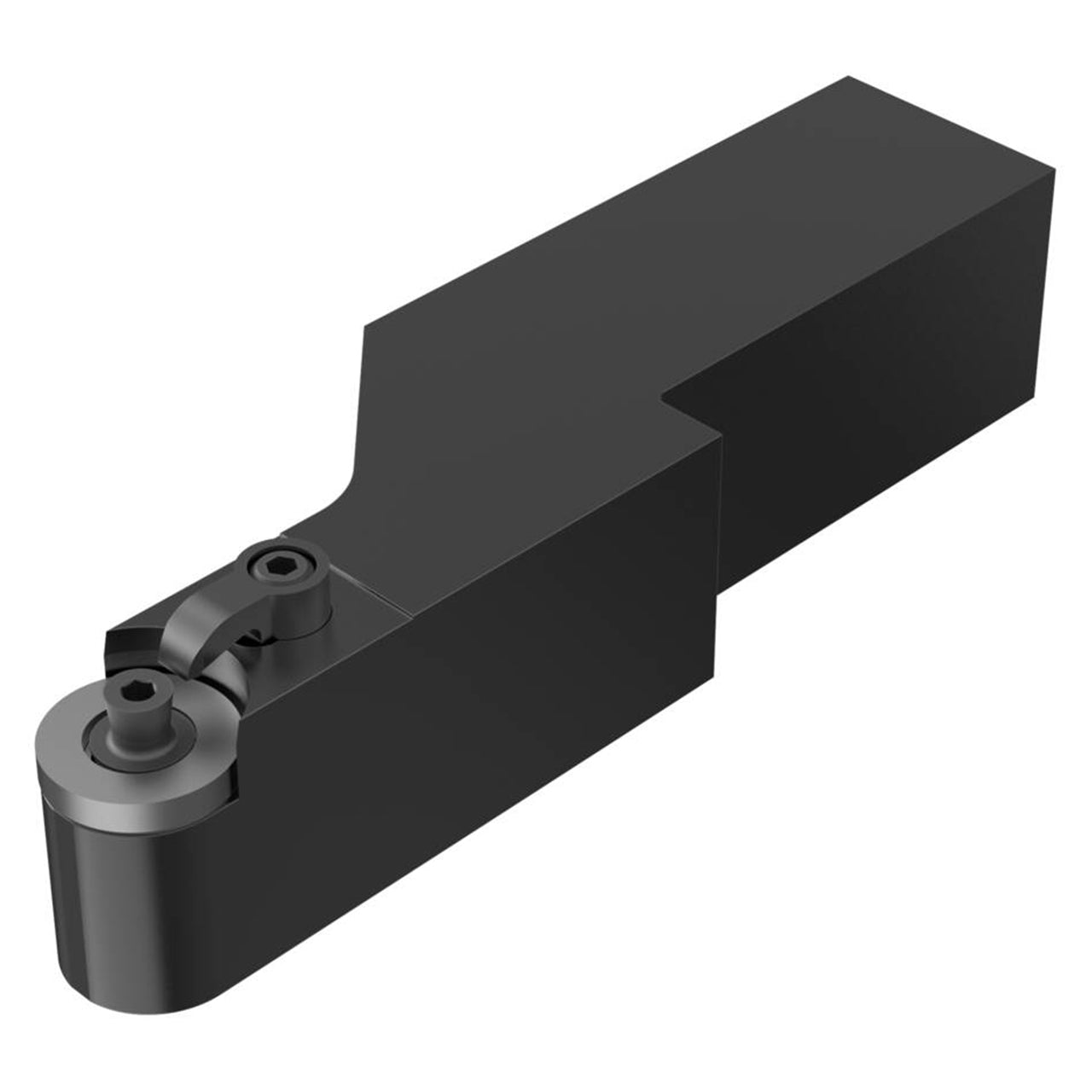

| Product Type | Indexable Turning Toolholder |
