Product Specifications
| Manufacturer Part Number | 00013029 |
| Shank Width (mm) | 22.60mm |
| Functional Height (mm) | 32.00mm |
| Functional Length (mm) | 35.00mm |
| Overall Length (mm) | 42.20mm |
| Functional Width (mm) | 23.00mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | A |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Shank Type | Cassettes |
| Version (Internal/External/Both) | External |

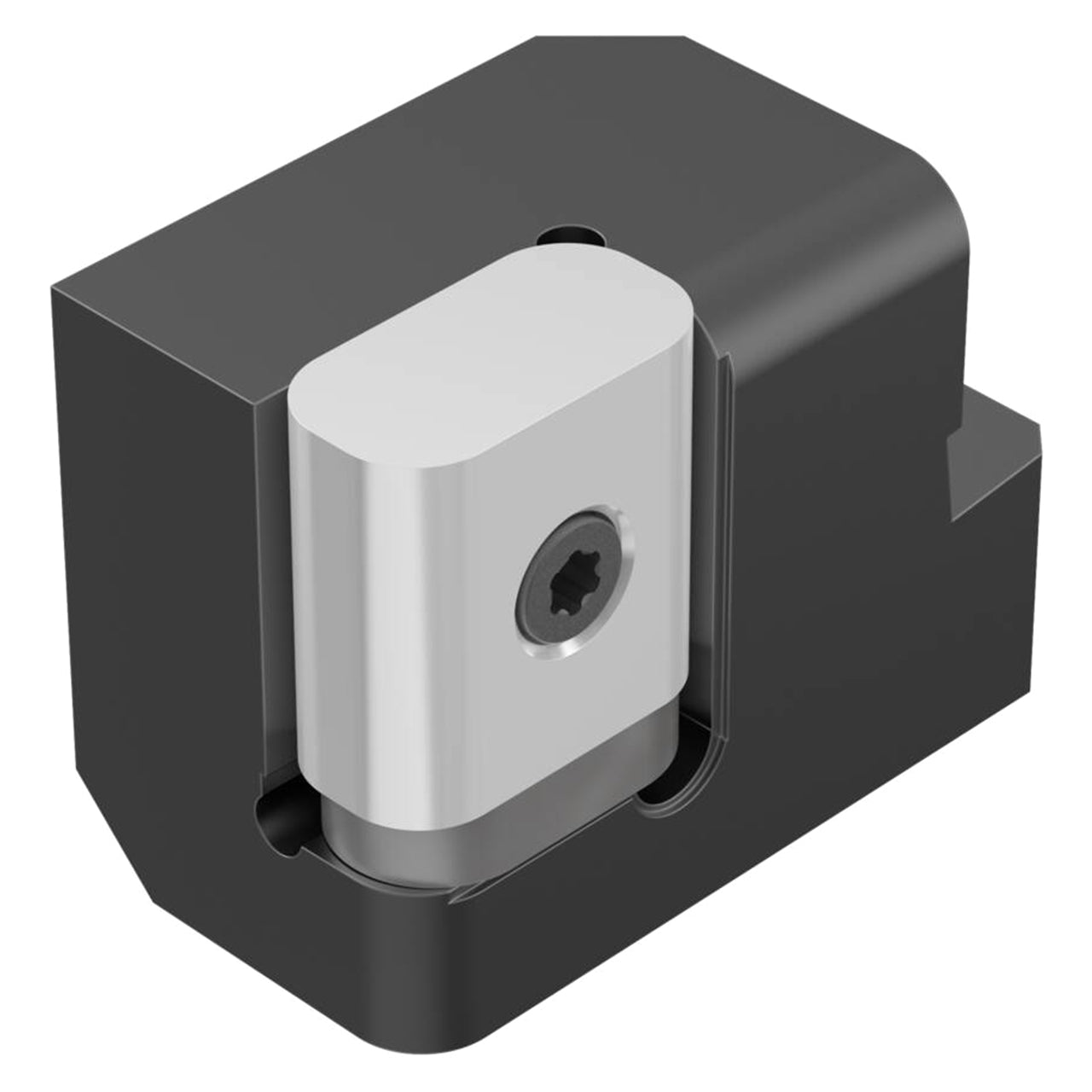

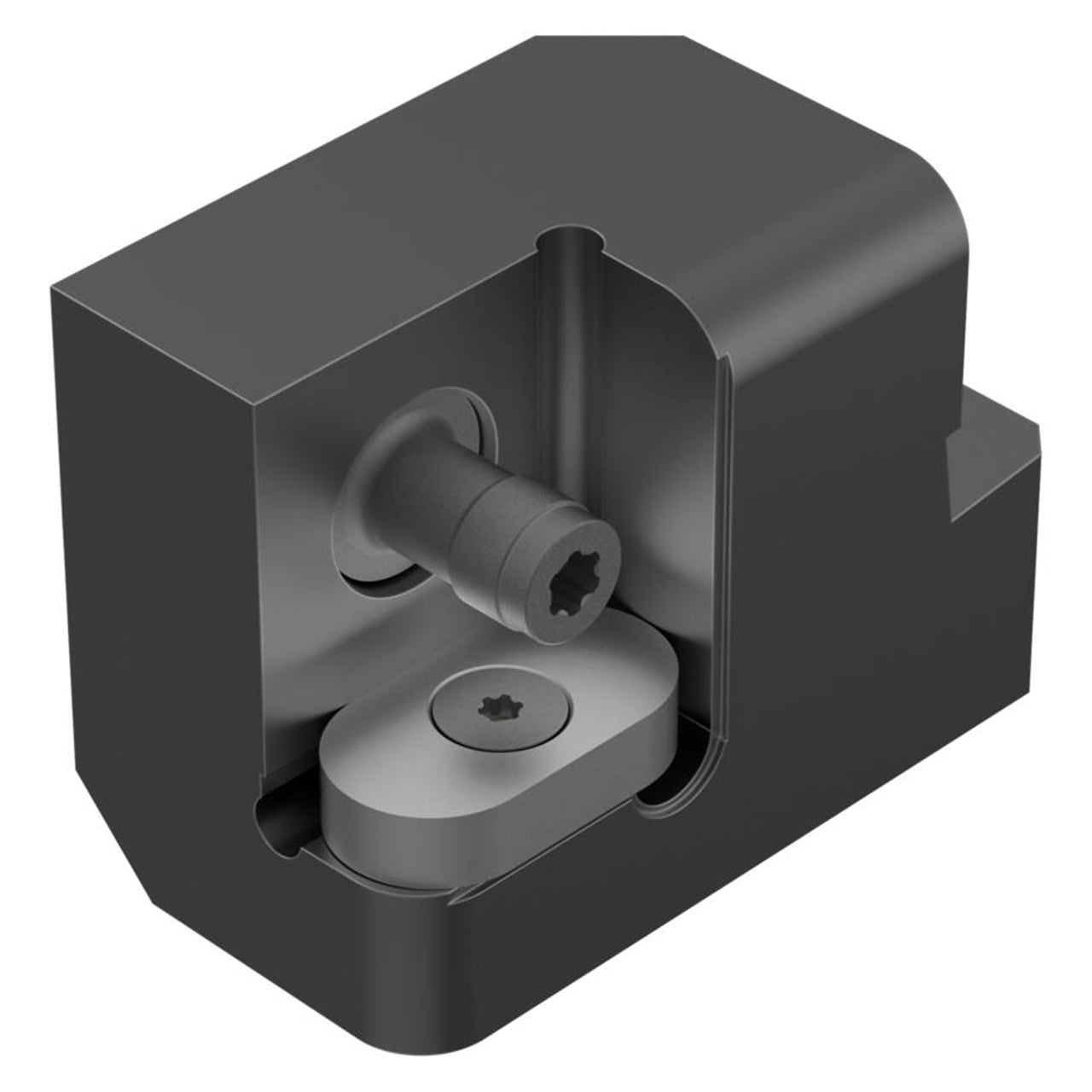

| Product Type | Indexable Turning Cartridge |
