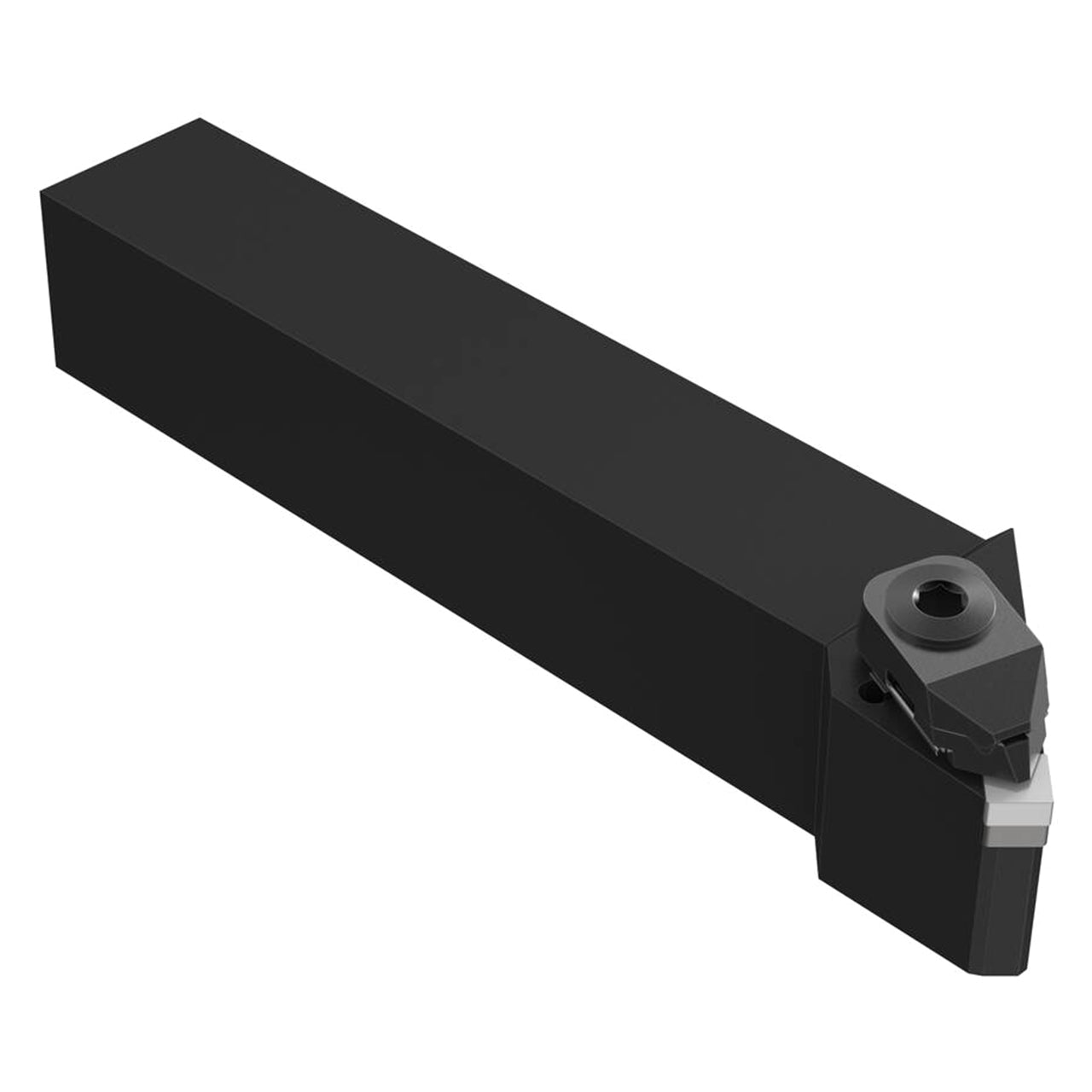

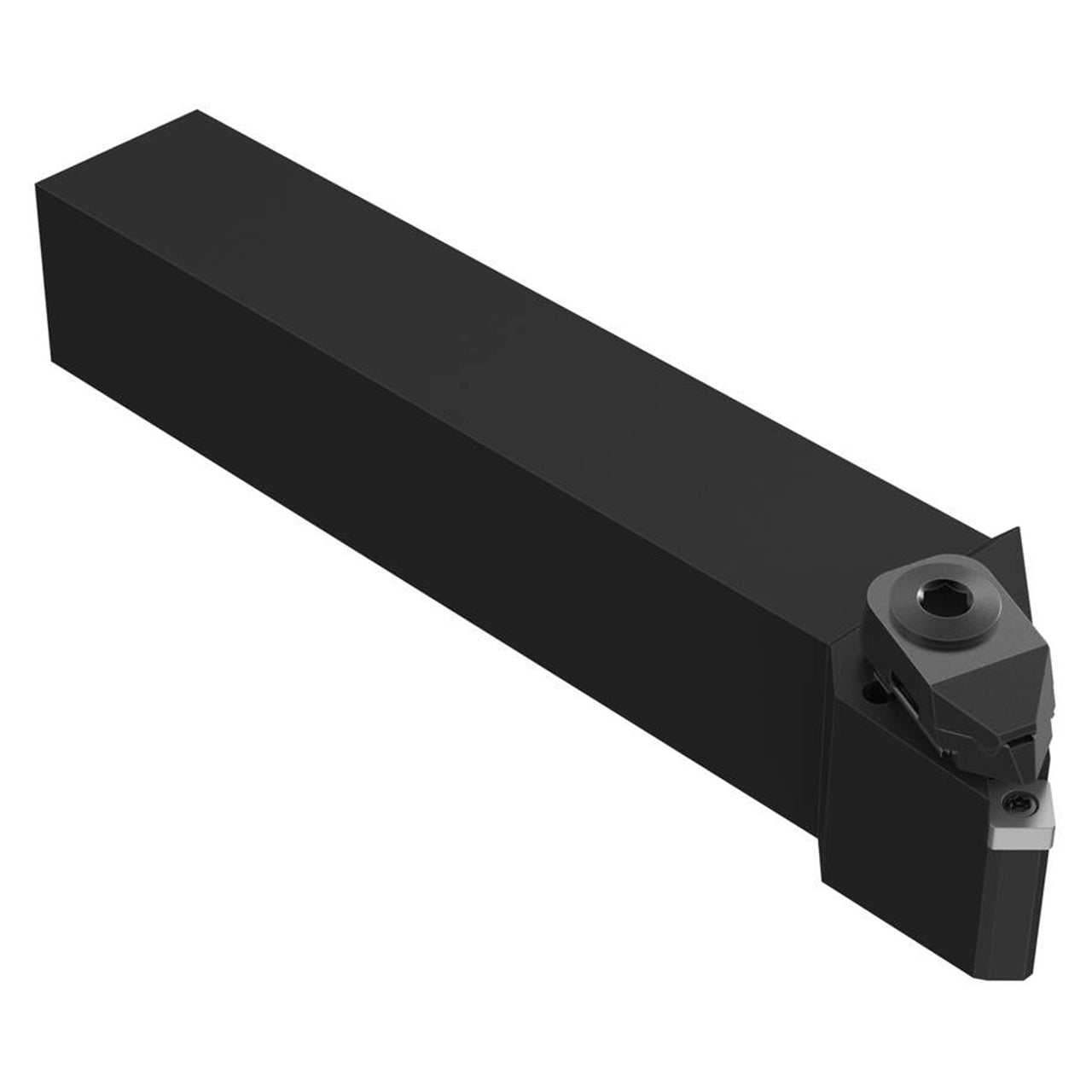

Product Specifications
| Manufacturer Part Number | 00005869 |
| Functional Length (mm) | 150.00mm |
| Functional Length Secondary (mm) | 154.20mm |
| Head Length (mm) | 27.00mm |
| Shank Width (mm) | 25.00mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Functional Width (mm) | 32.20mm |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | S |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Insert Shape Code | S |
| Shank Type | Square shank |
| Product Type | Indexable Turning Toolholder |
