Product Specifications
| Manufacturer Part Number | 00002821 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.677" |
| Minimum Cutting Diameter Internal 3 (mm) | 195.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.614" |
| Head Length (mm) | 41.00mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Cutting Depth (Decimal Inch) | 0.591" |
| Maximum Cutting Depth (mm) | 15.00mm |
| Cutting Width (Decimal Inch) | 0.197" |
| Cutting Width (mm) | 5.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.500" |
| Functional Width (mm) | 38.10mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Shank Type | Square shank |

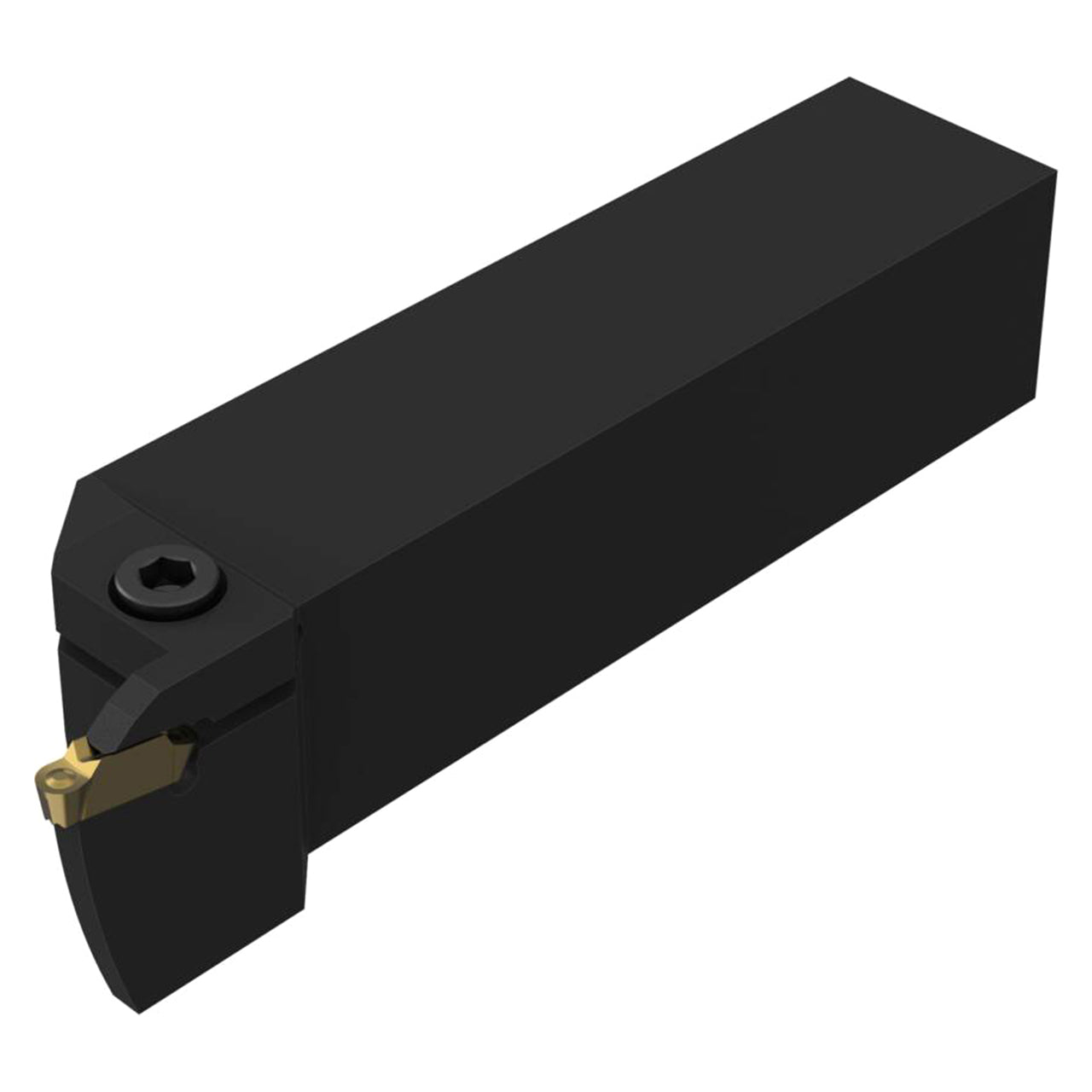

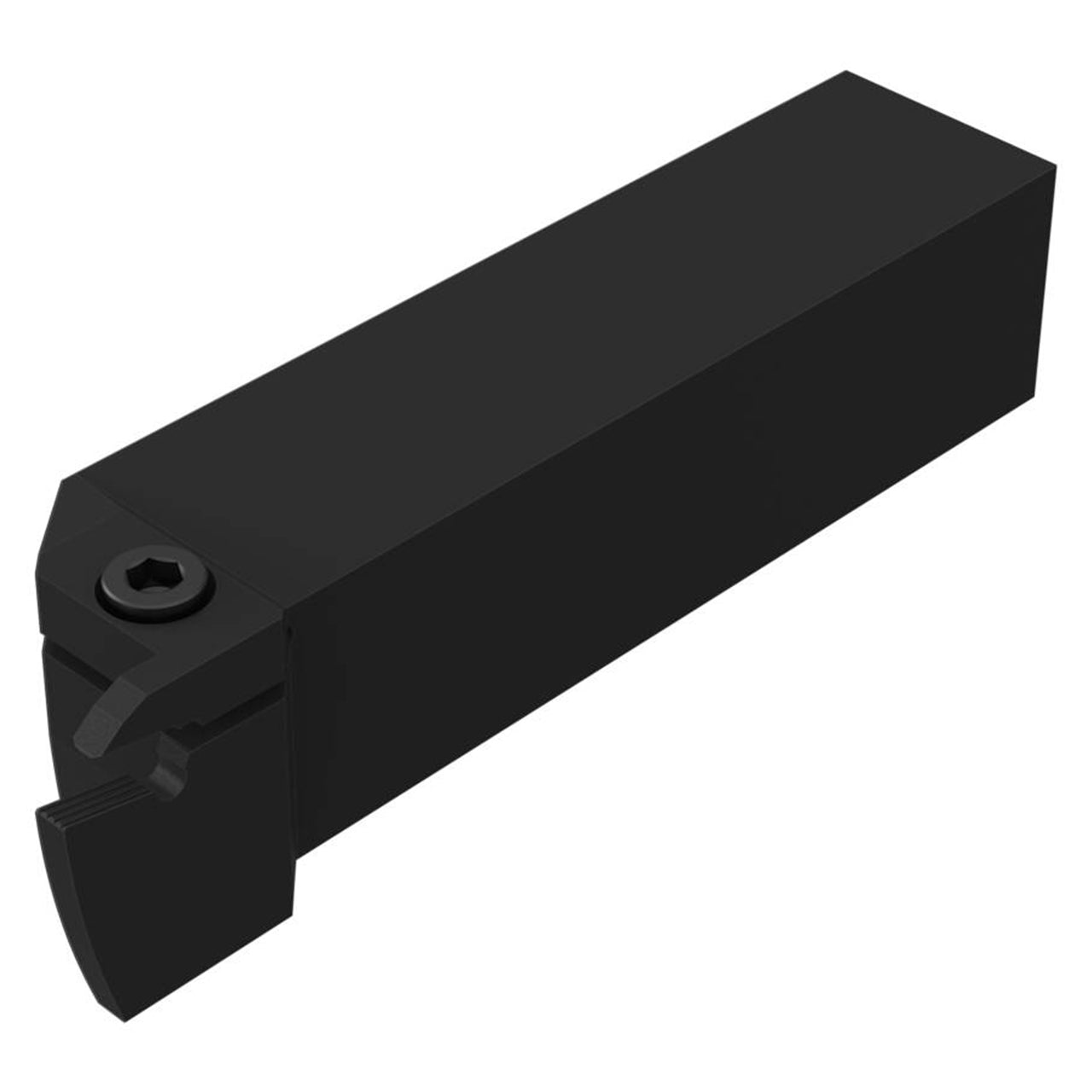

| Product Type | Indexable Grooving Toolholder |
