Product Specifications
| Manufacturer Part Number | 17004515 |
| Cutting Diameter (Decimal Inch) | 0.085" |
| Cutting Diameter (mm) | 2.16mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.100" |
| Minimum Cutting Diameter (mm) | 2.53mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.125" |
| Connection Diameter Machine Side (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Thread Diameter Size | M3 |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Protruding Length (Decimal Inch) | 0.984" |
| Protruding Length (mm) | 25.00mm |
| Shank Length (Decimal Inch) | 1.780" |
| Shank Length (mm) | 45.20mm |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Maximum Depth of Cut (mm) | 4.52mm |
| Maximum Depth of Cut (Decimal Inch) | 0.178" |
| Minimum Thread Pitch (Decimal Inch) | 0.0197 |
| Minimum Thread Pitch (mm) | 0.5 |
| Maximum Thread Pitch (Decimal Inch) | 0.0197 |
| Maximum Thread Pitch (mm) | 0.5 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Tooth Count | 9 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

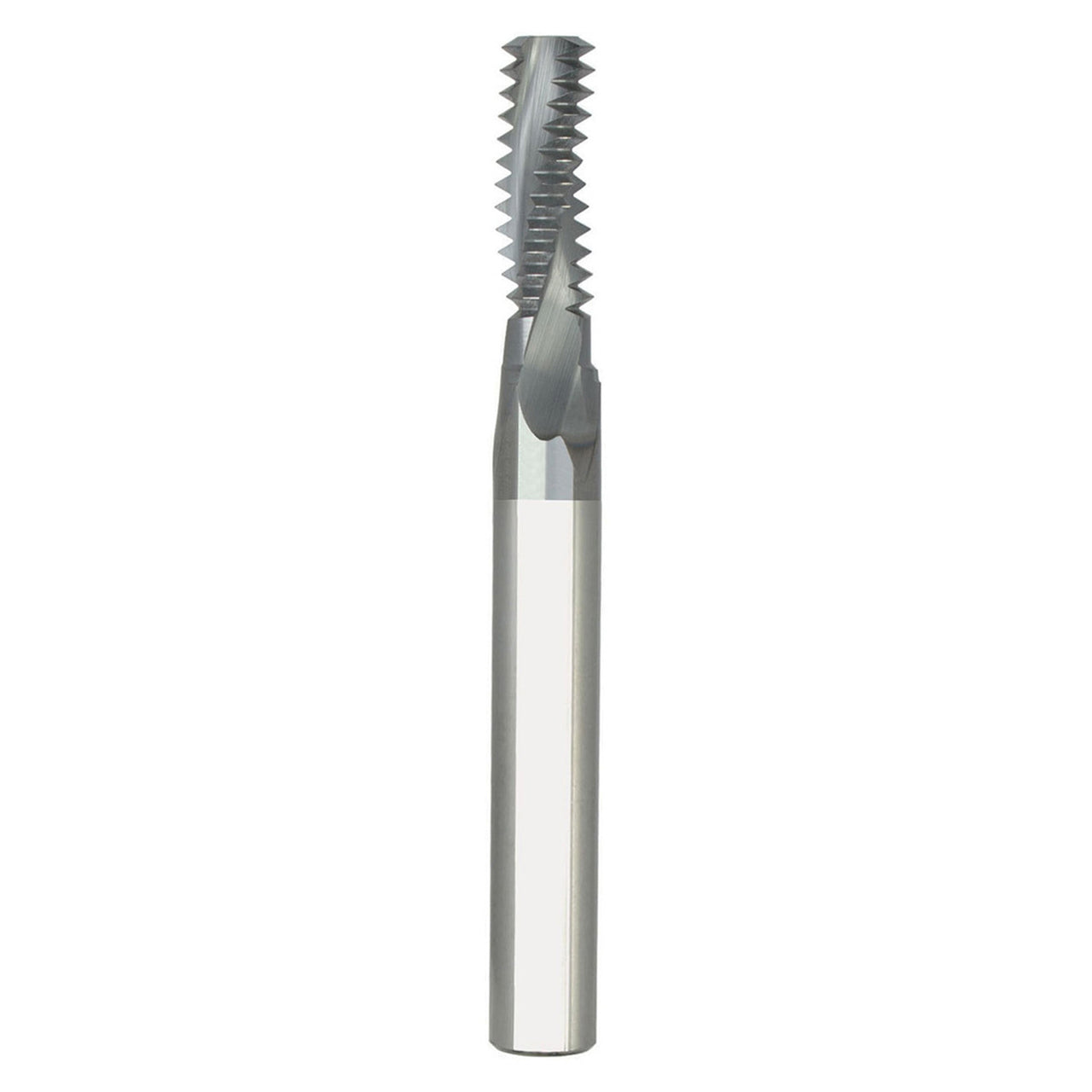

| Product Type | Helical Flute Thread Mill |
