Product Specifications
| Manufacturer Part Number | 17004503 |
| Cutting Diameter (Decimal Inch) | 0.245" |
| Cutting Diameter (mm) | 6.22mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.328" |
| Minimum Cutting Diameter (mm) | 8.33mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Thread Diameter Size | 1/8 |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Protruding Length (Decimal Inch) | 1.562" |
| Protruding Length (mm) | 39.67mm |
| Shank Length (Decimal Inch) | 2.063" |
| Shank Length (mm) | 52.40mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Maximum Depth of Cut (mm) | 11.11mm |
| Maximum Depth of Cut (Decimal Inch) | 0.438" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88.217 Degree |
| Number of Flute | 3 |
| Tooth Count | 11 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

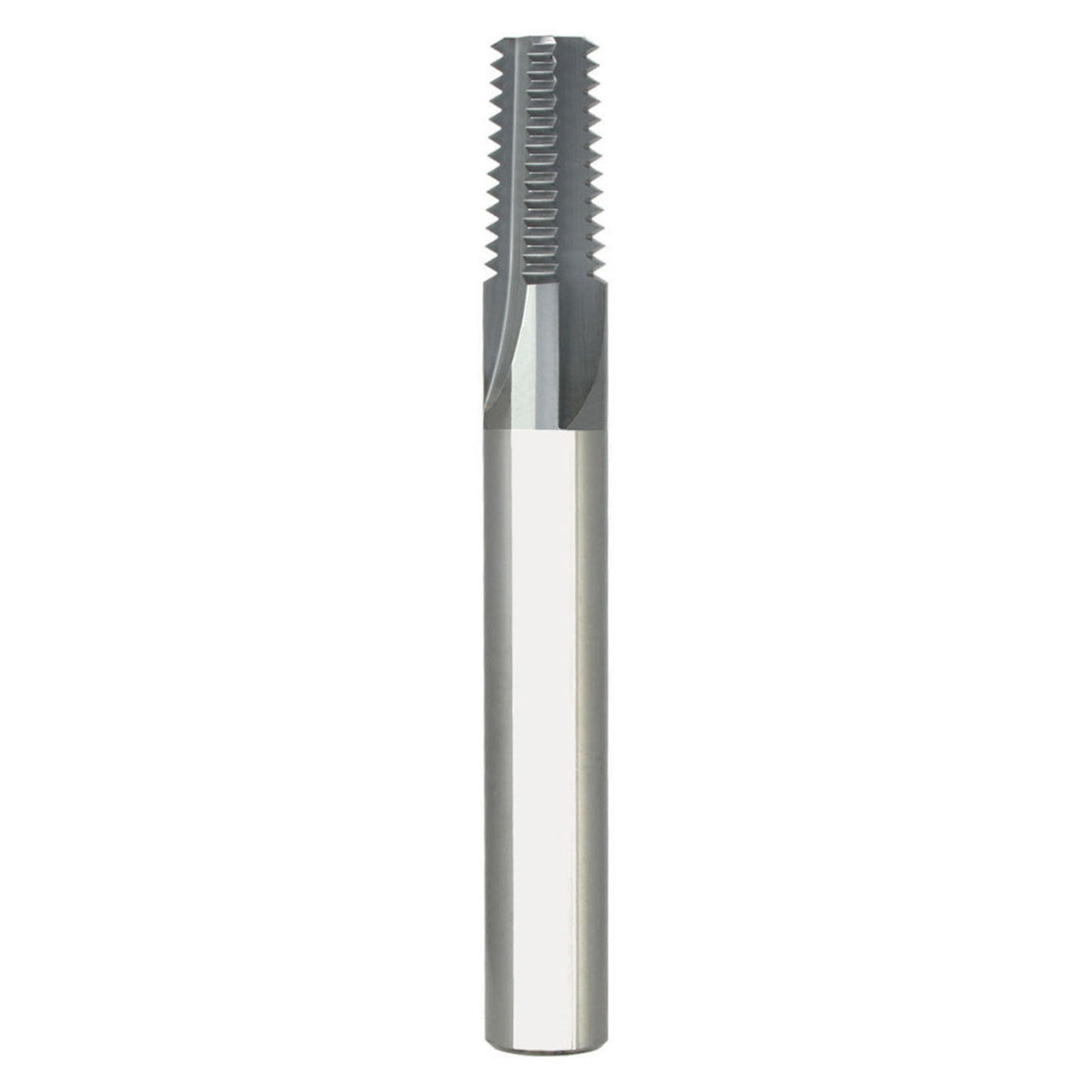

| Product Type | Straight Flute Thread Mill |
