Product Specifications
| Manufacturer Part Number | 17004499 |
| Cutting Diameter (Decimal Inch) | 0.745" |
| Cutting Diameter (mm) | 18.92mm |
| Minimum Cutting Diameter (Decimal Inch) | 2.609" |
| Minimum Cutting Diameter (mm) | 66.28mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Thread Diameter Size | 2.5 |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Protruding Length (Decimal Inch) | 2.031" |
| Protruding Length (mm) | 51.59mm |
| Shank Length (Decimal Inch) | 3.500" |
| Shank Length (mm) | 88.90mm |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Maximum Depth of Cut (mm) | 38.10mm |
| Maximum Depth of Cut (Decimal Inch) | 1.500" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88.217 Degree |
| Number of Flute | 4 |
| Tooth Count | 12 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

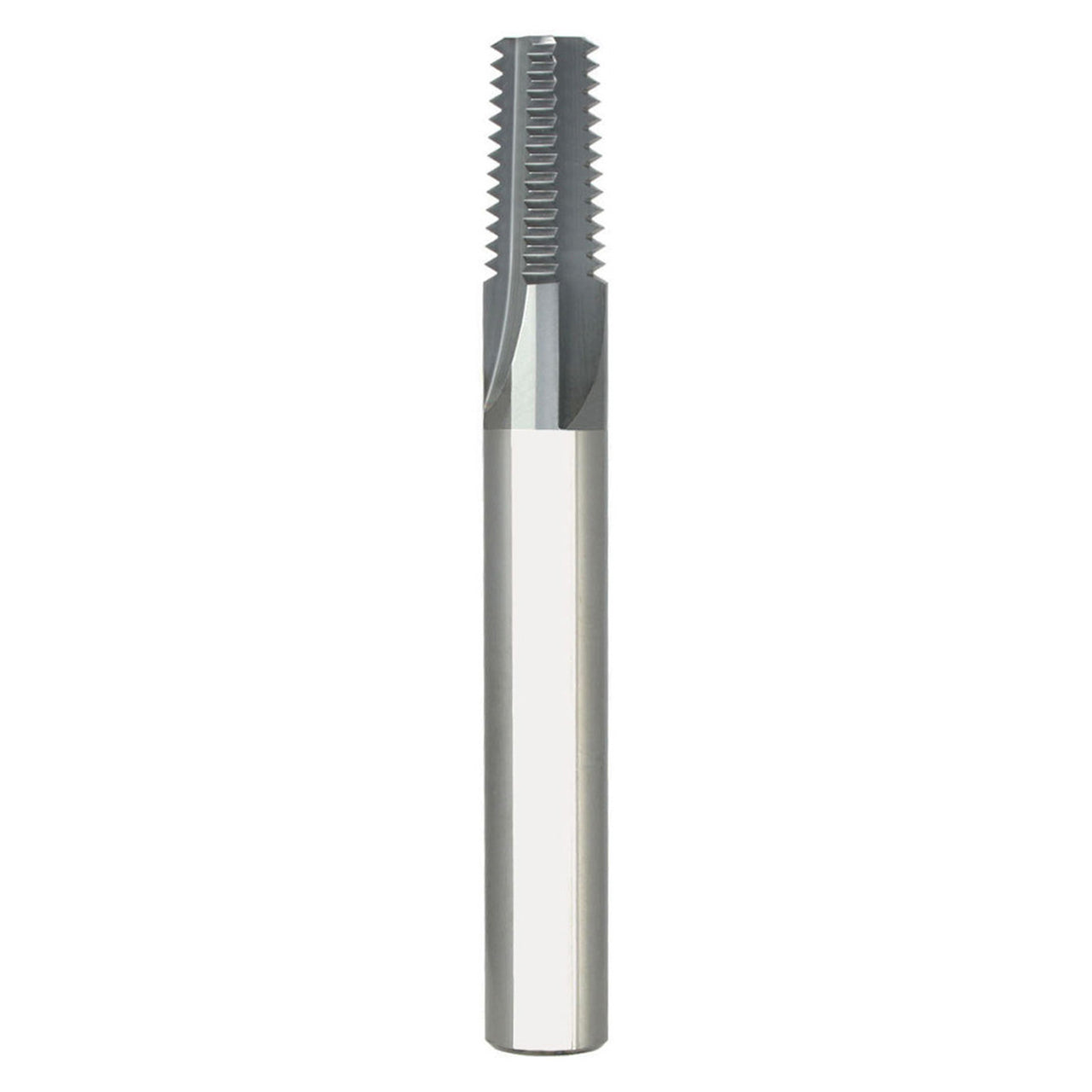

| Product Type | Straight Flute Thread Mill |
