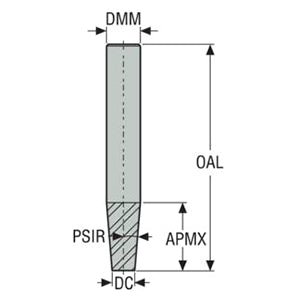

Product Specifications
| Manufacturer Part Number | 17004495 |
| Cutting Diameter (Decimal Inch) | 0.495" |
| Cutting Diameter (mm) | 12.57mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.906" |
| Minimum Cutting Diameter (mm) | 23.02mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Thread Diameter Size | 3/4 |
| Corner Radius (Decimal Inch) | 0.003" |
| Corner Radius (mm) | 0.08mm |
| Protruding Length (Decimal Inch) | 1.781" |
| Protruding Length (mm) | 45.24mm |
| Shank Length (Decimal Inch) | 3.125" |
| Shank Length (mm) | 79.38mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 22.23mm |
| Maximum Depth of Cut (Decimal Inch) | 0.875" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88.217 Degree |
| Number of Flute | 4 |
| Tooth Count | 13 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

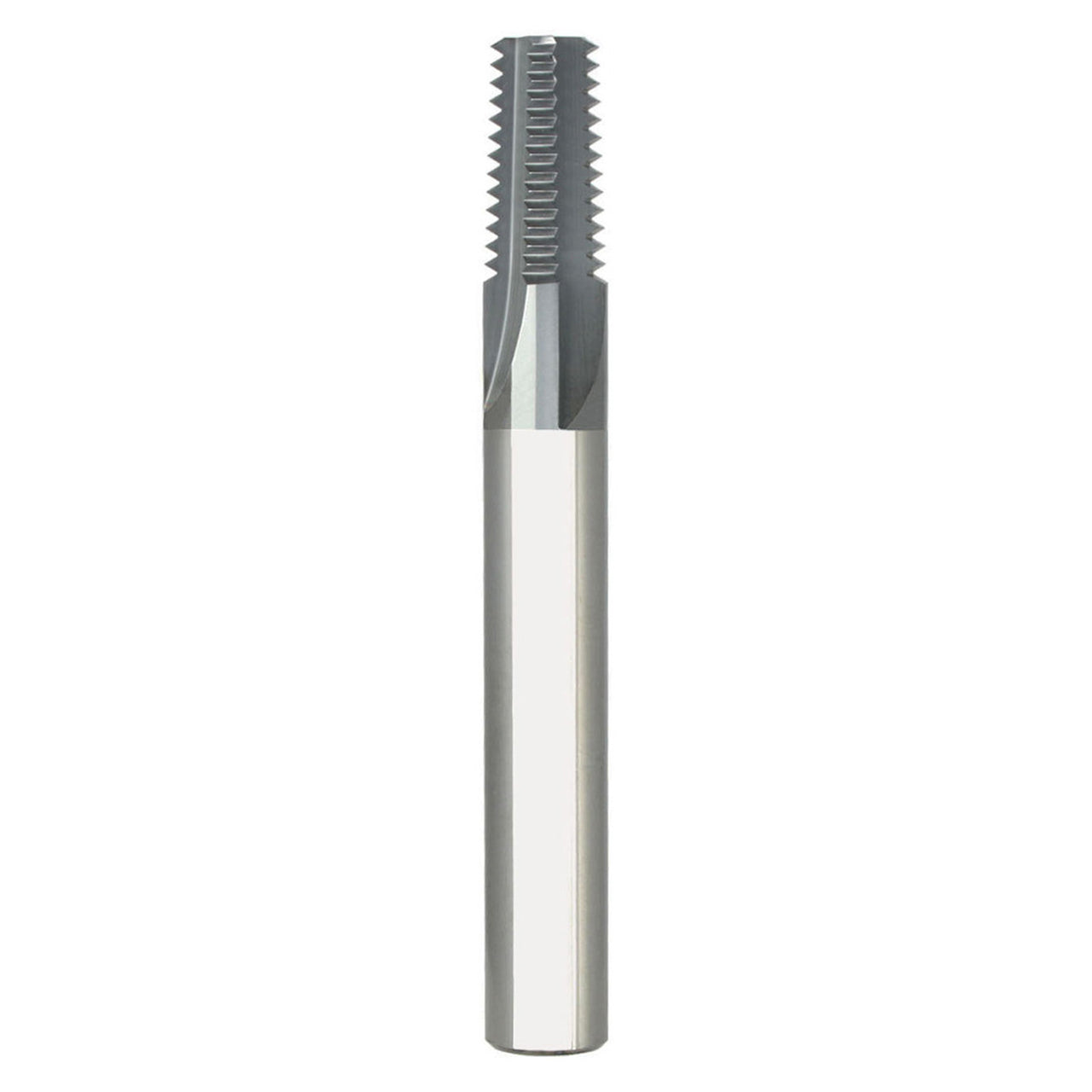

| Product Type | Straight Flute Thread Mill |
