Product Specifications
| Manufacturer Part Number | 17003858 |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Cutting Diameter (mm) | 6.35mm |
| Cutting Diameter 1 (Decimal Inch) | 0.250" |
| Cutting Diameter 1 (mm) | 6.35mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | 0.002 |
| Lower Cutting Diameter Tolerance (mm) | 0.0508 |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.431" |
| Maximum Helical Interpolation Hole Diameter (mm) | 10.94mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.325" |
| Minimum Helical Interpolation Hole Diameter (mm) | 8.26mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.375" |
| Cutting Edge Effective Length (mm) | 34.93mm |
| Minimum Clamping Length (Decimal Inch) | 1.417" |
| Minimum Clamping Length (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Maximum Depth of Cut (mm) | 34.93mm |
| Maximum Depth of Cut (Decimal Inch) | 1.375" |
| Corner Chamfer Width (Decimal Inch) | 0.033" |
| Corner Chamfer Width (mm) | 0.84mm |
| Corner Chamfer Width Lower Tolerance (Decimal Inch) | 0.005 |
| Corner Chamfer Width Lower Tolerance (mm) | 0.127 |
| Corner Chamfer Width Upper Tolerance (Decimal Inch) | 0.005 |
| Corner Chamfer Width Upper Tolerance (mm) | 0.127 |
| Theoretical Cutting Edge Length (Decimal Inch) | 1.375" |
| Theoretical Cutting Edge Length (mm) | 34.93mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | BURRFINE |
| Cutting Geometry Type Technical | BURRFINE |
| Flute Helix Angle (Degree) | 24 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 4 Degree |
| Rake Radial Angle (Degree) | 4 Degree |
| Axial Rake Angle (Degree) | 24 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 15 Degree |
| Length Variant Cataloque | 4 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Axial Runout (mm) | 0.01mm |
| Shank Type | Cylindrical |
| Coating | Diamond CVD |

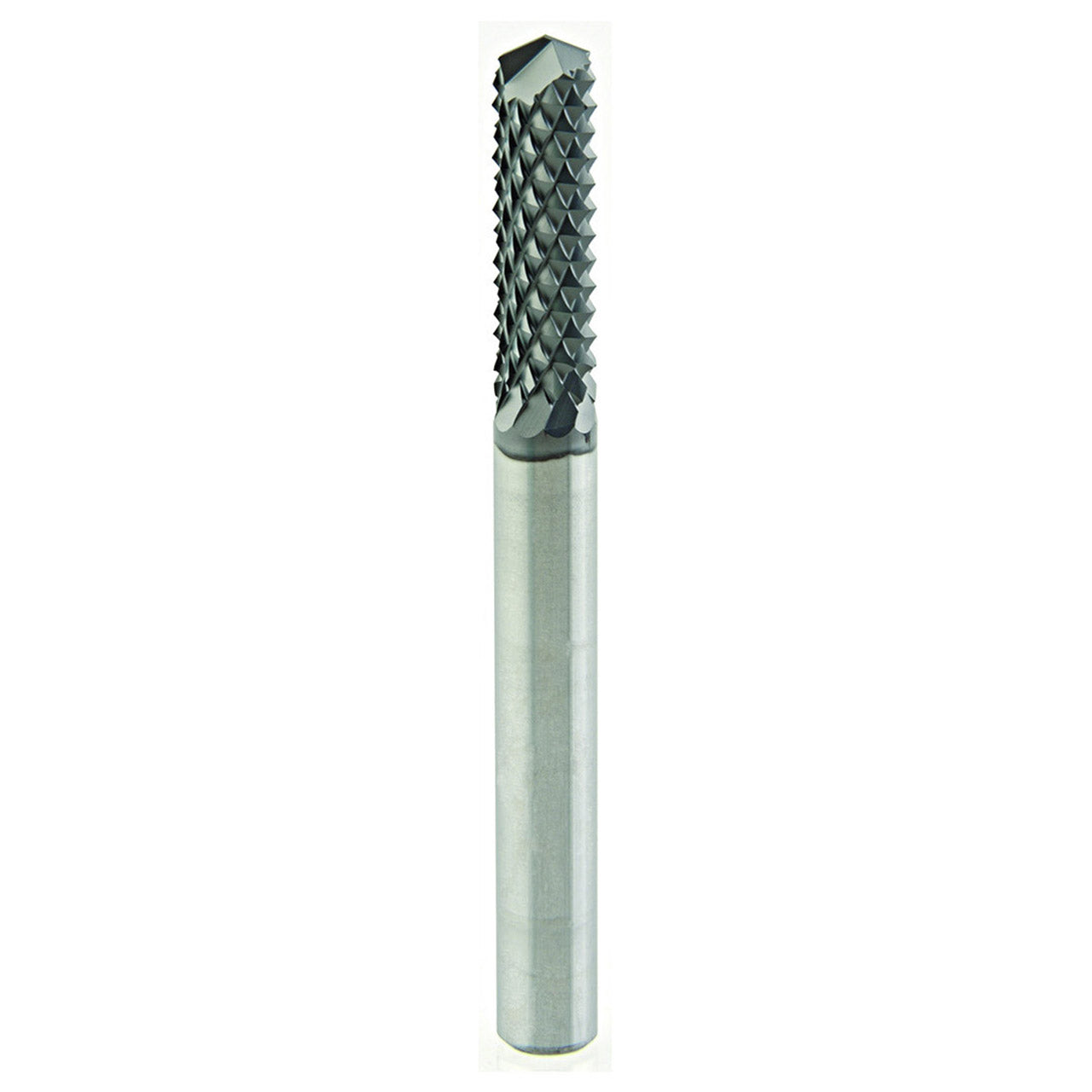

| Product Type | Diamond Pattern Router Bit |
