Product Specifications
| Manufacturer Part Number | 17002947 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Cutting Diameter 1 (Decimal Inch) | 1.000" |
| Cutting Diameter 1 (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | 0.002 |
| Lower Cutting Diameter Tolerance (mm) | 0.0508 |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Neck Diameter (Decimal Inch) | 0.960" |
| Neck Diameter (mm) | 24.38mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.959" |
| Maximum Helical Interpolation Hole Diameter (mm) | 49.75mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.300" |
| Minimum Helical Interpolation Hole Diameter (mm) | 33.02mm |
| Corner Radius (Decimal Inch) | 0.500" |
| Corner Radius (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.250" |
| Cutting Edge Effective Length (mm) | 31.75mm |
| Neck Length (Decimal Inch) | 4.000" |
| Neck Length (mm) | 101.60mm |
| Neck Length 1 (Decimal Inch) | 4.000" |
| Neck Length 1 (mm) | 101.60mm |
| Minimum Clamping Length (Decimal Inch) | 2.281" |
| Minimum Clamping Length (mm) | 57.94mm |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Maximum Depth of Cut (mm) | 31.75mm |
| Maximum Depth of Cut (Decimal Inch) | 1.250" |
| Theoretical Cutting Edge Length (Decimal Inch) | 1.250" |
| Theoretical Cutting Edge Length (mm) | 31.75mm |
| Profile Radius (Decimal Inch) | 0.500" |
| Profile Radius (mm) | 12.70mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | STBN430 |
| Cutting Geometry Type Technical | STBN430 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 9 Degree |
| Rake Radial Angle (Degree) | 9 Degree |
| Rake Orthogonal Angle (Degree) | 5 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 2 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Axial Runout (mm) | 0.01mm |
| Shank Type | Weldon |
| Coating | AlTiN |

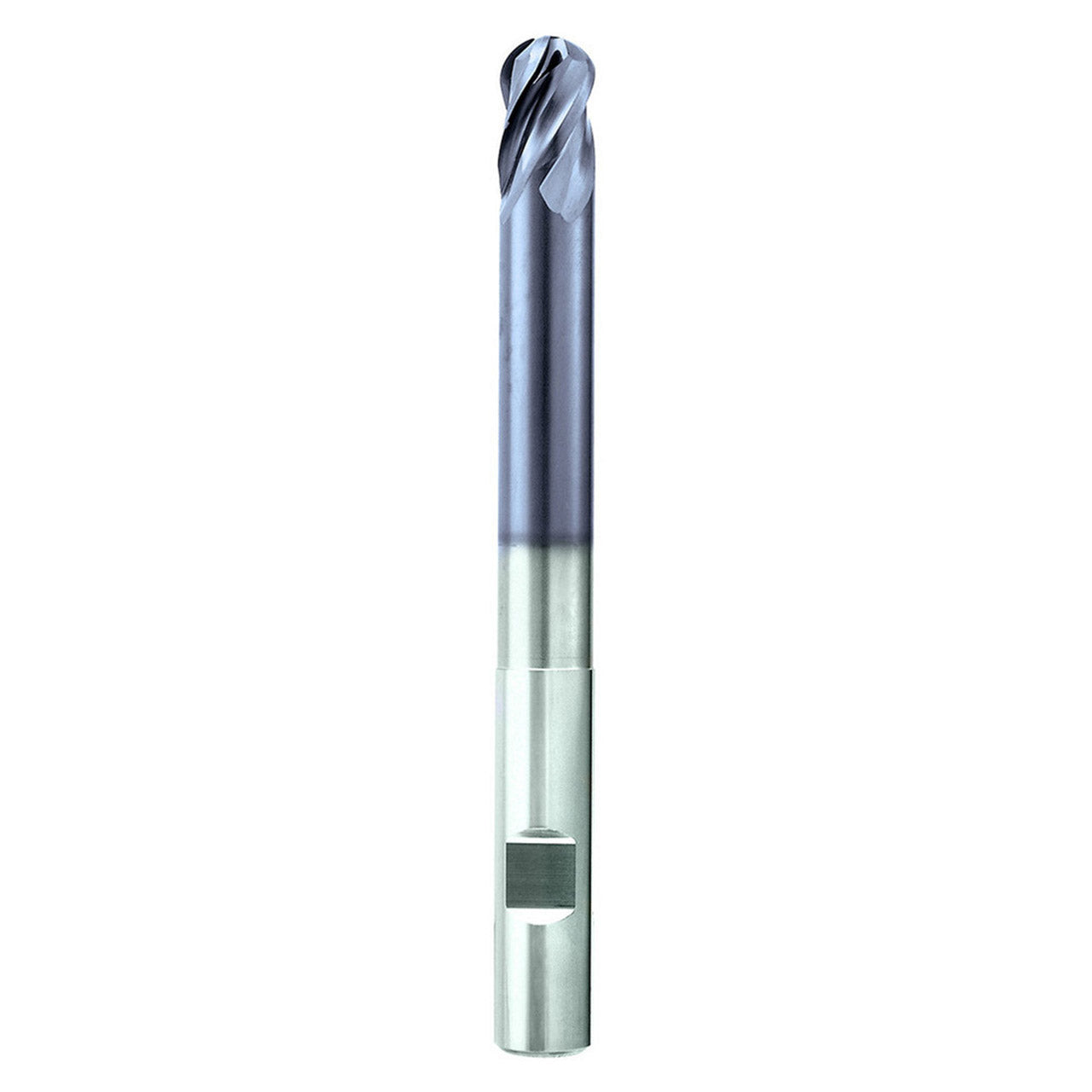

| Product Type | Ball End Mill |
