Product Specifications
| Manufacturer Part Number | 17002194 |
| Cutting Diameter (Decimal Inch) | 0.188" |
| Cutting Diameter (mm) | 4.76mm |
| Cutting Diameter 1 (Decimal Inch) | 0.188" |
| Cutting Diameter 1 (mm) | 4.76mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.188" |
| Connection Diameter Machine Side (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.188" |
| Shank Diameter (mm) | 4.76mm |
| Neck Diameter (Decimal Inch) | 0.178" |
| Neck Diameter (mm) | 4.52mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.244" |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.19mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.354" |
| Maximum Helical Interpolation Hole Diameter (mm) | 8.99mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.250" |
| Cutting Edge Effective Length (mm) | 6.35mm |
| Neck Length (Decimal Inch) | 0.563" |
| Neck Length (mm) | 14.30mm |
| Neck Length 1 (Decimal Inch) | 0.563" |
| Neck Length 1 (mm) | 14.30mm |
| Minimum Clamping Length (Decimal Inch) | 1.102" |
| Minimum Clamping Length (mm) | 28.00mm |
| Length Variant Cataloque | 1 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.250" |
| Theoretical Cutting Edge Length (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Number of Flute | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.250" |
| Maximum Depth of Cut (mm) | 6.35mm |
| Corner Radius (Decimal Inch) | 0.010" |
| Corner Radius (mm) | 0.25mm |
| Axial Runout (Decimal Inch) | 0 |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (Decimal Inch) | 0 |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 3 |
| Face Cutting Edge Count | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 40 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | AN340 |
| Cutting Geometry Type Technical | AN340 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | TiCN |

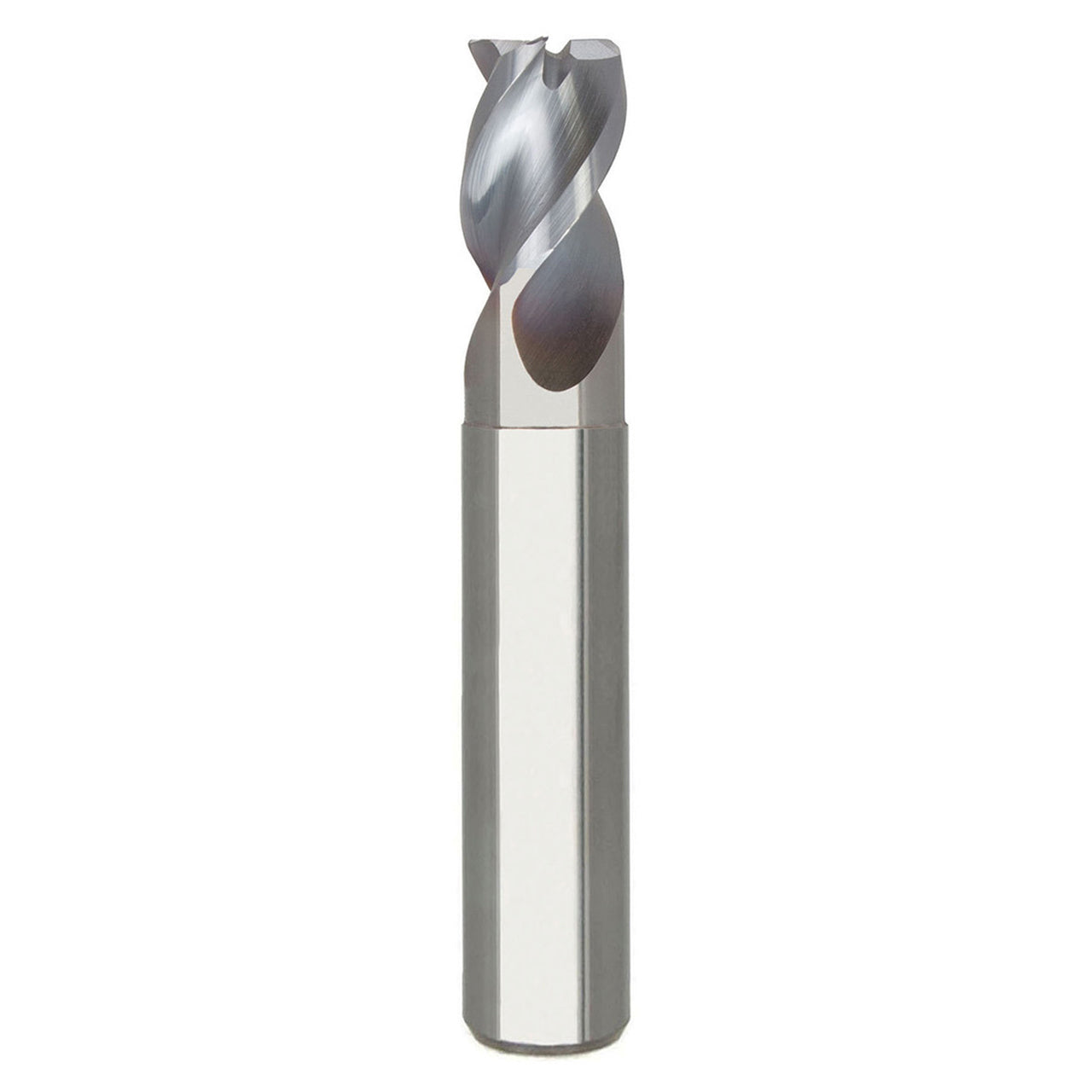

| Product Type | Corner Radius End Mill |
