Product Specifications
| Manufacturer Part Number | 17000433 |
| Cutting Diameter (Decimal Inch) | 0.235" |
| Cutting Diameter (mm) | 5.97mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.257" |
| Minimum Cutting Diameter (mm) | 6.53mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Thread Diameter Size | 5/16 |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Protruding Length (Decimal Inch) | 1.562" |
| Protruding Length (mm) | 39.67mm |
| Shank Length (Decimal Inch) | 1.716" |
| Shank Length (mm) | 43.59mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Maximum Depth of Cut (mm) | 15.88mm |
| Maximum Depth of Cut (Decimal Inch) | 0.625" |
| Coolant Entry Style Code | 1 |
| Coolant Exit Style Code | 1 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Tooth Count | 12 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

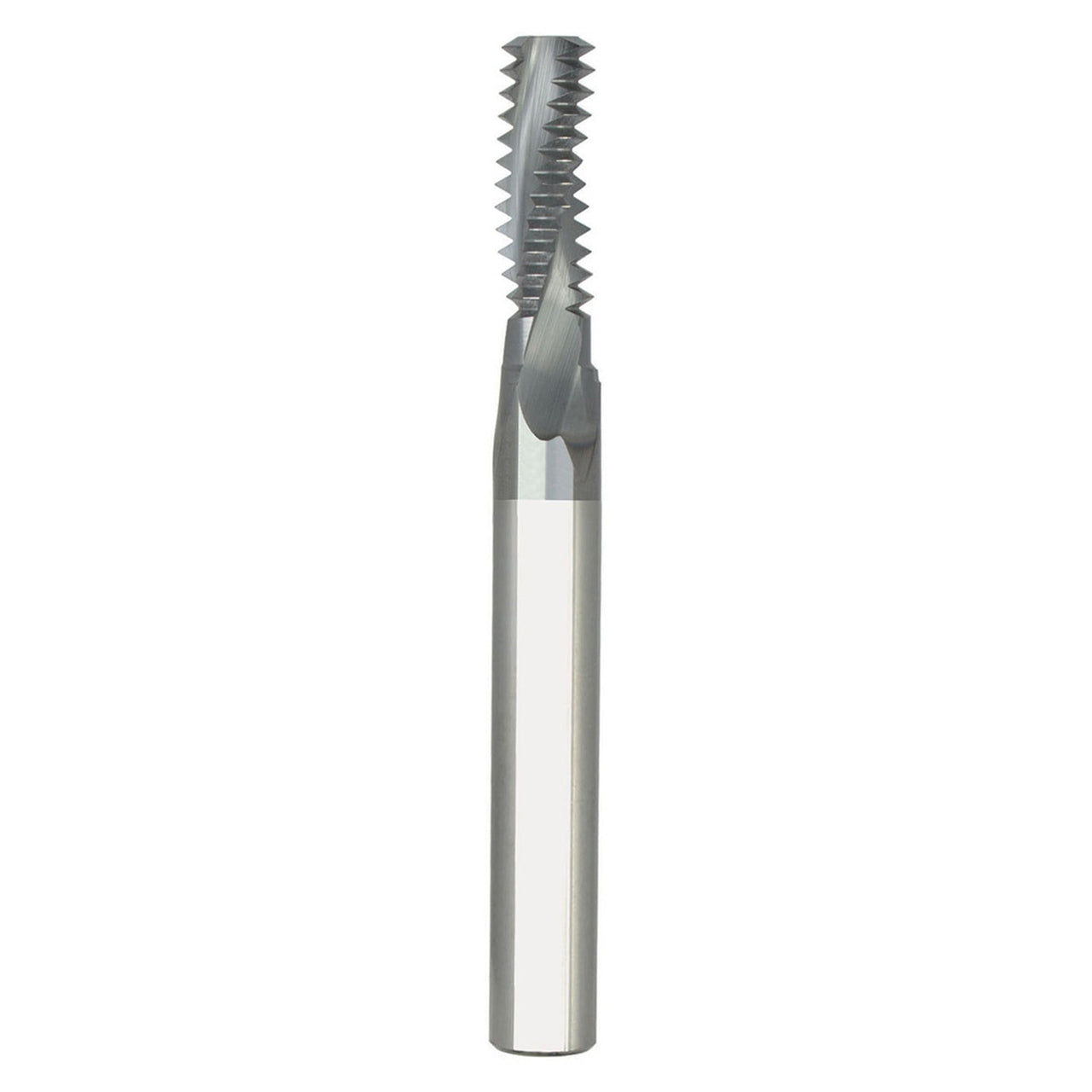

| Product Type | Helical Flute Thread Mill |
