Product Specifications
| Manufacturer Part Number | 10134854 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter 1 (Decimal Inch) | 0.750" |
| Cutting Diameter 1 (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.463" |
| Maximum Helical Interpolation Hole Diameter (mm) | 37.15mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.975" |
| Minimum Helical Interpolation Hole Diameter (mm) | 24.77mm |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 2.250" |
| Cutting Edge Effective Length (mm) | 57.15mm |
| Depth of Cut (Decimal Inch) | 2.250" |
| Depth of Cut (mm) | 57.15mm |
| Maximum Depth of Cut (Decimal Inch) | 2.250" |
| Maximum Depth of Cut (mm) | 57.15mm |
| Shank Type | Cylindrical |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | ACS540 |
| Cutting Geometry Type Technical | ACS540 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 40 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 9 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 5 |
| Material | Carbide |
| Coating | Uncoated |

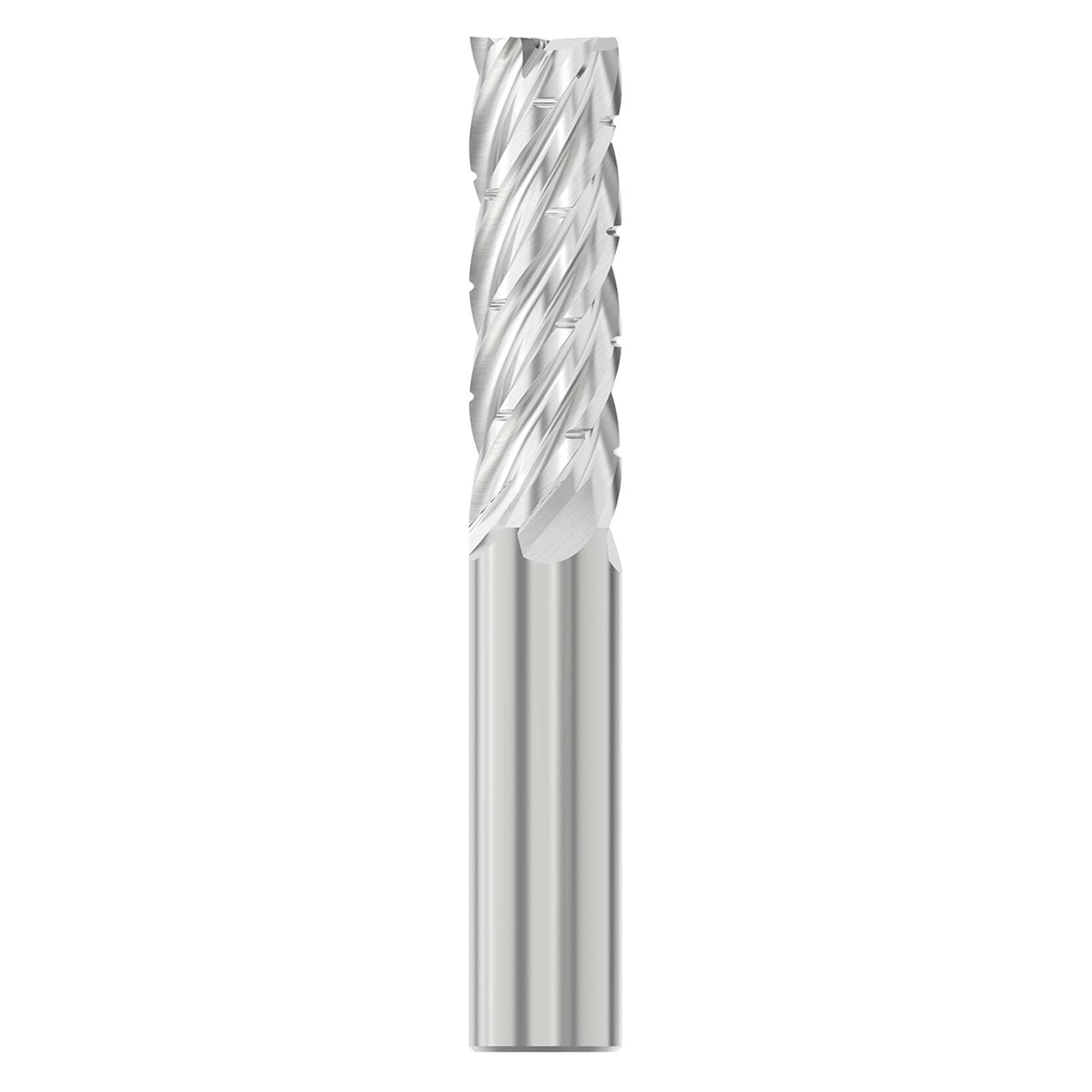

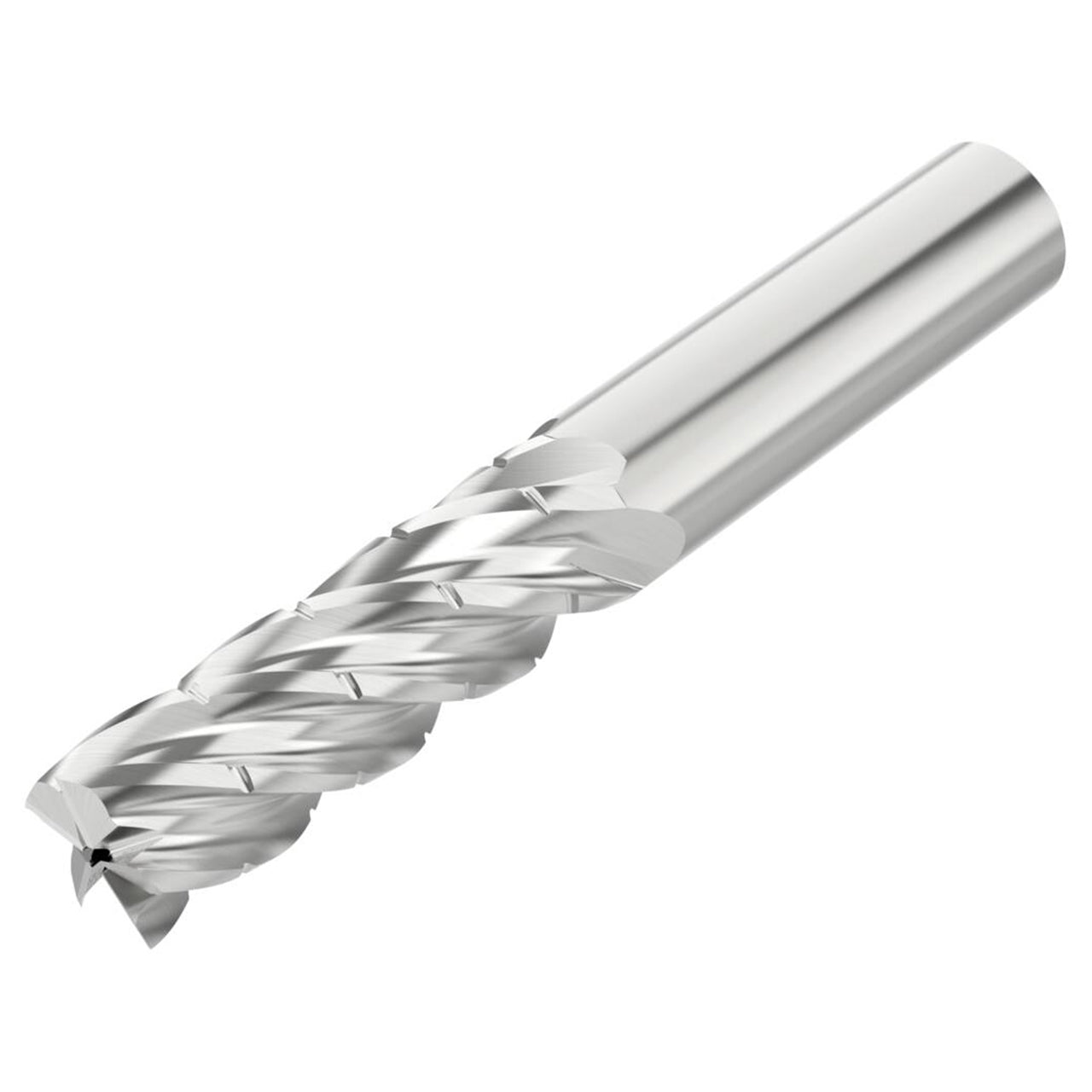

| Product Type | Square End Mill |
