Product Specifications
| Manufacturer Part Number | 10115960 |
| Cutting Diameter (Decimal Inch) | 0.125" |
| Cutting Diameter (mm) | 3.18mm |
| Cutting Diameter 1 (Decimal Inch) | 0.125" |
| Cutting Diameter 1 (mm) | 3.18mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.125" |
| Connection Diameter Machine Side (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.244" |
| Maximum Helical Interpolation Hole Diameter (mm) | 6.19mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.163" |
| Minimum Helical Interpolation Hole Diameter (mm) | 4.13mm |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (mm) | 38.10mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.250" |
| Cutting Edge Effective Length (mm) | 6.35mm |
| Depth of Cut (Decimal Inch) | 2.500" |
| Depth of Cut (mm) | 63.50mm |
| Maximum Depth of Cut (Decimal Inch) | 0.250" |
| Maximum Depth of Cut (mm) | 6.35mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | STS540 |
| Cutting Geometry Type Technical | STS540 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 40 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 9 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 5 |
| Material | Carbide |
| Coating | HTA |

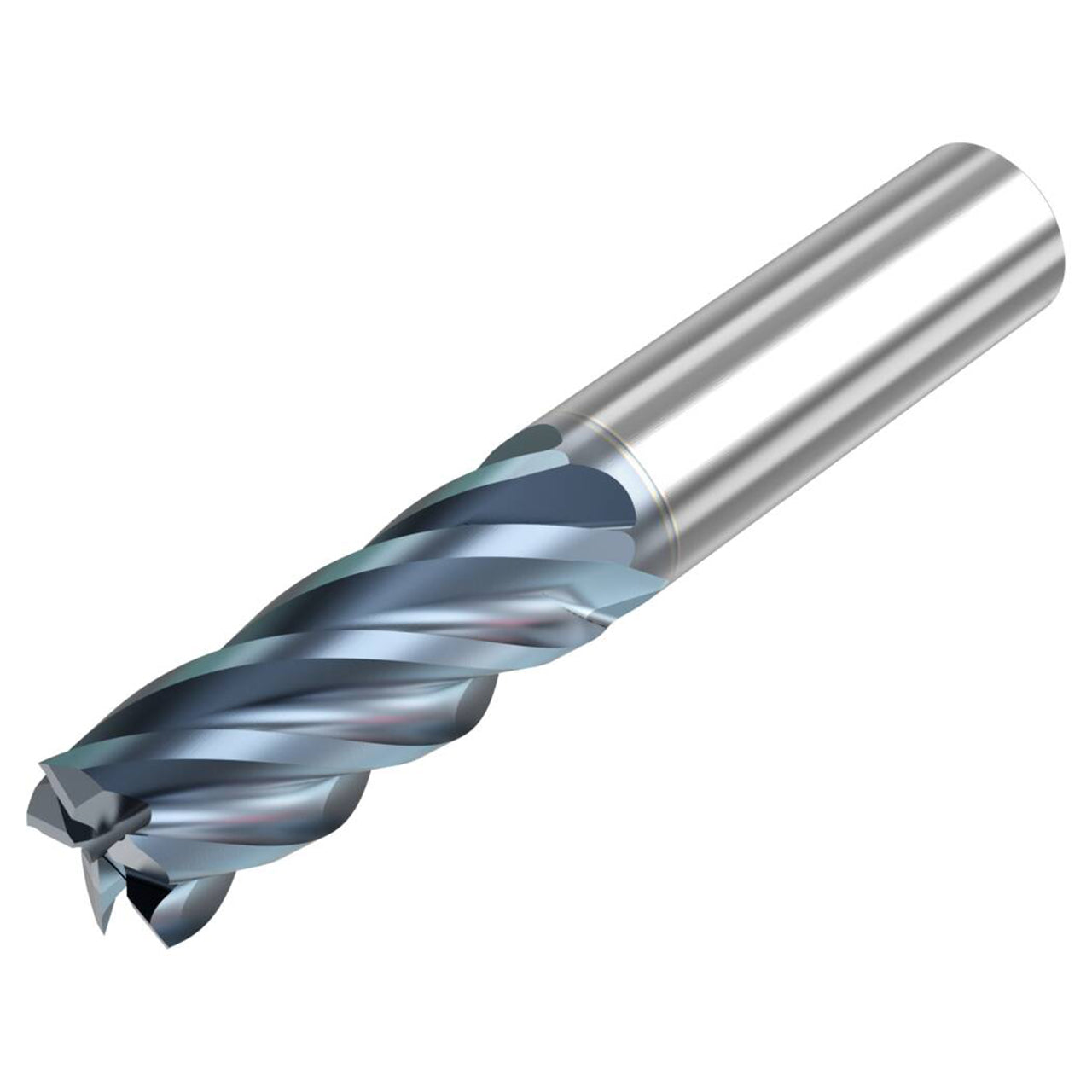

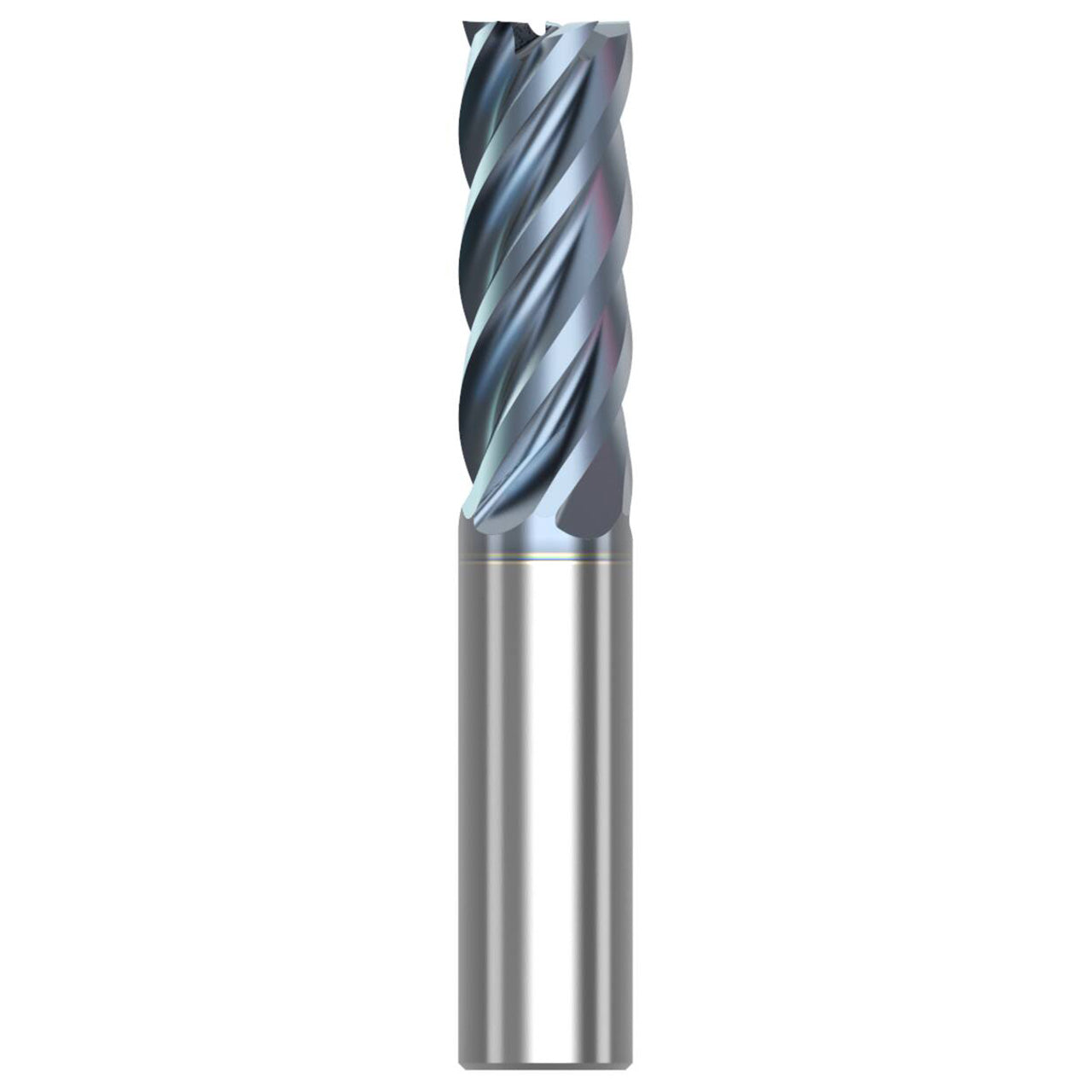

| Product Type | Square End Mill |
