Product Specifications

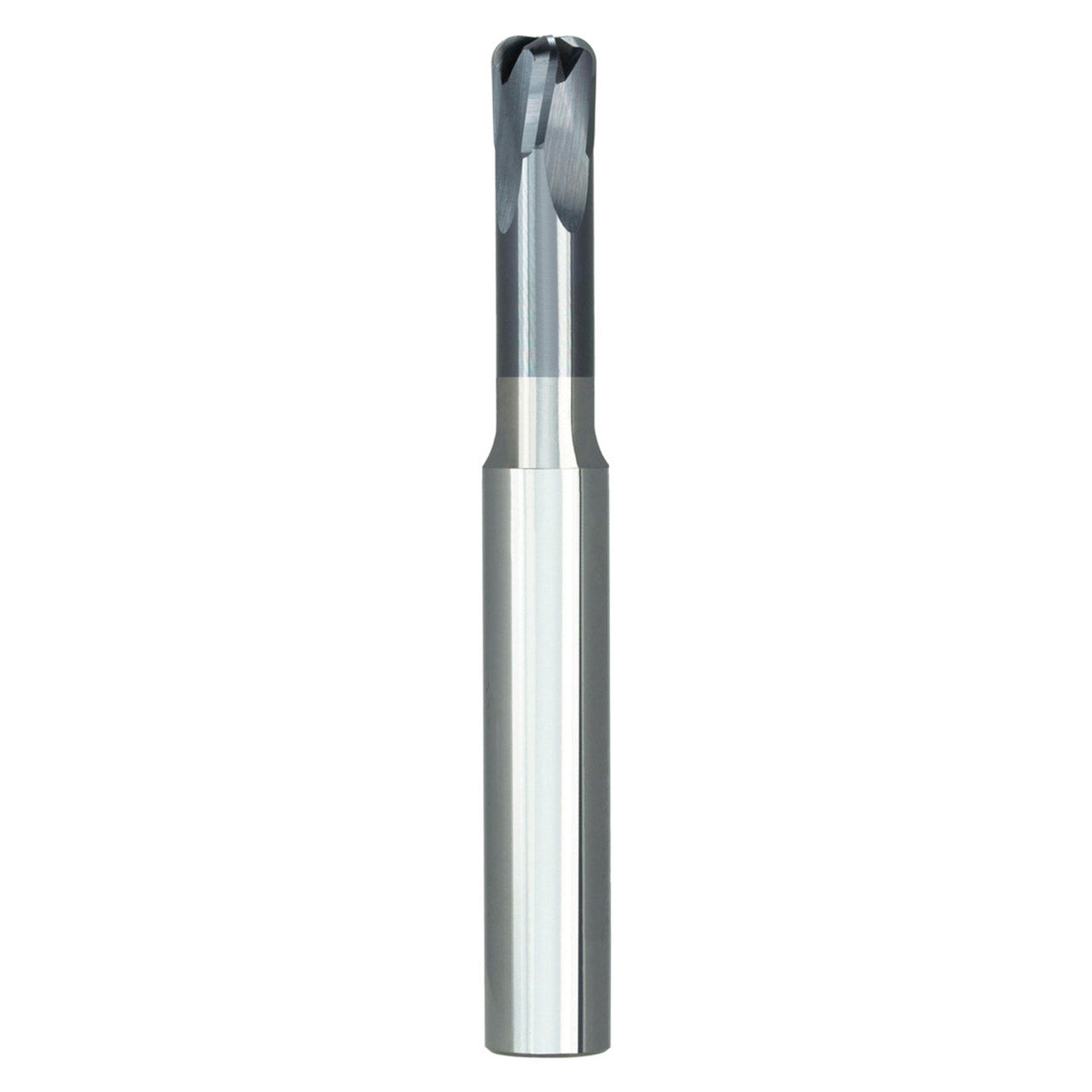

| Manufacturer Part Number | 03169566 |
| Cutting Diameter (mm) | 1.50mm |
| Cutting Diameter 1 (mm) | 1.50mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Maximum Cutting Diameter (mm) | 3.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 2.70mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 3.90mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 4.43mm |
| Cutting Edge Effective Length (mm) | 0.80mm |
| Neck Length (mm) | 6.00mm |
| Neck Length 1 (mm) | 6.00mm |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 0.80mm |
| Overall Length (mm) | 50.00mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (mm) | 0.80mm |
| Curved Cutting Edge Radius (mm) | 0.75mm |
| Corner Radius (mm) | 0.75mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 92 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 92 Degree |
| Neck Angle (Degree) | 10 Degree |
| Collision Angle (Degree) | 6.5 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Cutting Geometry Type | MZN410RM |
| Cutting Geometry Type Technical | MZN410RM |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | High-Feed End Mill |
