Product Specifications
| Manufacturer Part Number | 03136025 |

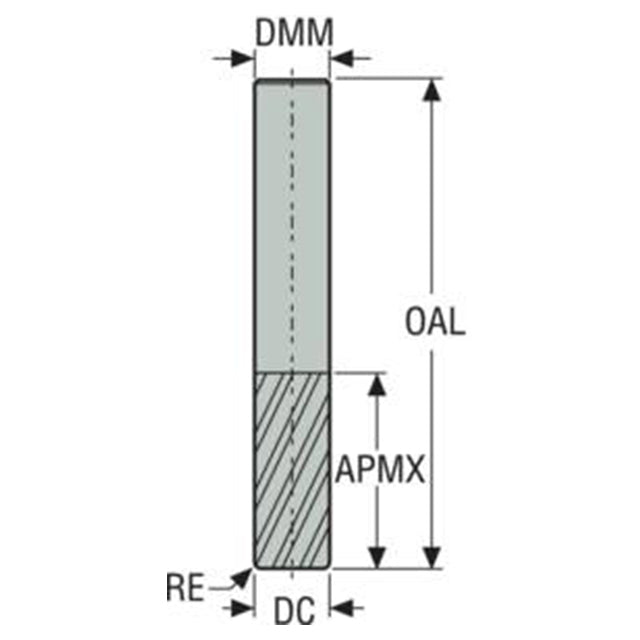

| Cutting Diameter (Decimal Inch) | 1.250" |
| Cutting Diameter (mm) | 31.75mm |
| Cutting Diameter 1 (Decimal Inch) | 1.250" |
| Cutting Diameter 1 (mm) | 31.75mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.490" |
| Maximum Helical Interpolation Hole Diameter (mm) | 63.25mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.625" |
| Minimum Helical Interpolation Hole Diameter (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 4.500" |
| Overall Length (mm) | 114.30mm |
| Cutting Edge Effective Length (Decimal Inch) | 2.000" |
| Cutting Edge Effective Length (mm) | 50.80mm |
| Corner Chamfer Width (mm) | 0.04mm |
| Maximum Depth of Cut (Decimal Inch) | 2.000" |
| Maximum Depth of Cut (mm) | 50.80mm |
| Corner Radius (Decimal Inch) | 0.120" |
| Corner Radius (mm) | 3.05mm |
| Shank Type | Weldon |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | VFP435SBR |
| Cutting Geometry Type Technical | VFP435 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 35 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 12 Degree |
| Axial Rake Angle (Degree) | 35 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 2.5 Degree |
| Number of Flute | 4 |
| Material | HSCO-AlCrN |
| Coating | AlCrN |
| Product Type | Corner Radius End Mill |
