Product Specifications
| Manufacturer Part Number | 03083873 |
| Cutting Diameter (Decimal Inch) | 0.438" |
| Cutting Diameter (mm) | 11.11mm |
| Cutting Diameter 1 (Decimal Inch) | 0.438" |
| Cutting Diameter 1 (mm) | 11.11mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.438" |
| Connection Diameter Machine Side (mm) | 11.11mm |
| Shank Diameter (Decimal Inch) | 0.438" |
| Shank Diameter (mm) | 11.11mm |
| Neck Diameter (Decimal Inch) | 0.420" |
| Neck Diameter (mm) | 10.67mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.569" |
| Minimum Helical Interpolation Hole Diameter (mm) | 14.45mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.833" |
| Maximum Helical Interpolation Hole Diameter (mm) | 21.16mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.875" |
| Cutting Edge Effective Length (mm) | 22.23mm |
| Neck Length (Decimal Inch) | 1.313" |
| Neck Length (mm) | 33.34mm |
| Neck Length 1 (Decimal Inch) | 1.313" |
| Neck Length 1 (mm) | 33.34mm |
| Minimum Clamping Length (Decimal Inch) | 1.562" |
| Minimum Clamping Length (mm) | 39.68mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.875" |
| Theoretical Cutting Edge Length (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.875" |
| Maximum Depth of Cut (mm) | 22.23mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.51mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 40 Degree |
| Rake Radial Angle (Degree) | 12 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | STRN440.2 |
| Cutting Geometry Type Technical | STRN440.2 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Weldon |
| Material | Carbide |
| Coating | AlTiN |

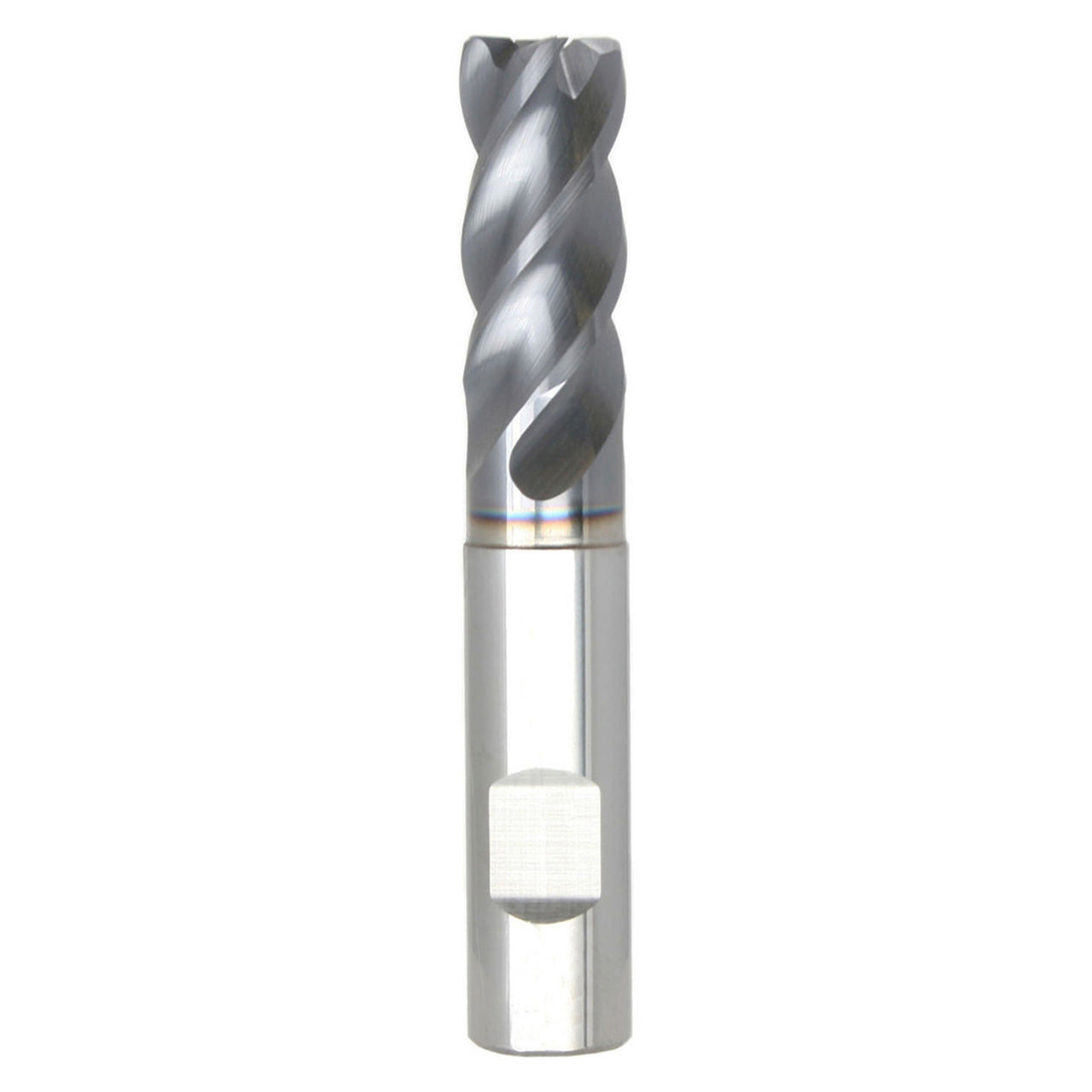

| Product Type | Corner Radius End Mill |
