Product Specifications
| Manufacturer Part Number | 03043593 |
| Cutting Diameter (Decimal Inch) | 0.094" |
| Cutting Diameter (mm) | 2.38mm |
| Cutting Diameter 1 (Decimal Inch) | 0.160" |
| Cutting Diameter 1 (mm) | 4.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.188" |
| Maximum Cutting Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Neck Diameter (Decimal Inch) | 0.166" |
| Neck Diameter (mm) | 4.22mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.244" |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.19mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.346" |
| Maximum Helical Interpolation Hole Diameter (mm) | 8.78mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.012" |
| Cutting Edge Effective Length (mm) | 0.30mm |
| Neck Length (Decimal Inch) | 1.328" |
| Neck Length (mm) | 33.73mm |
| Neck Length 1 (Decimal Inch) | 1.328" |
| Neck Length 1 (mm) | 33.73mm |
| Minimum Clamping Length (Decimal Inch) | 1.417" |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 3 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.012" |
| Theoretical Cutting Edge Length (mm) | 0.30mm |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.012" |
| Maximum Depth of Cut (mm) | 0.30mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.078" |
| Curved Cutting Edge Radius (mm) | 1.99mm |
| Corner Radius (Decimal Inch) | 0.014" |
| Corner Radius (mm) | 0.36mm |
| Axial Runout (Decimal Inch) | 0 |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (Decimal Inch) | 0 |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (Decimal Inch) | 0.023" |
| Programming Radius (mm) | 0.58mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Neck Angle (Degree) | 0.5 Degree |
| Collision Angle (Degree) | 1.33 Degree |
| Rake Radial Angle (Degree) | 0.5 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | SN200R |
| Cutting Geometry Type Technical | SN200R |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | AlTiN |

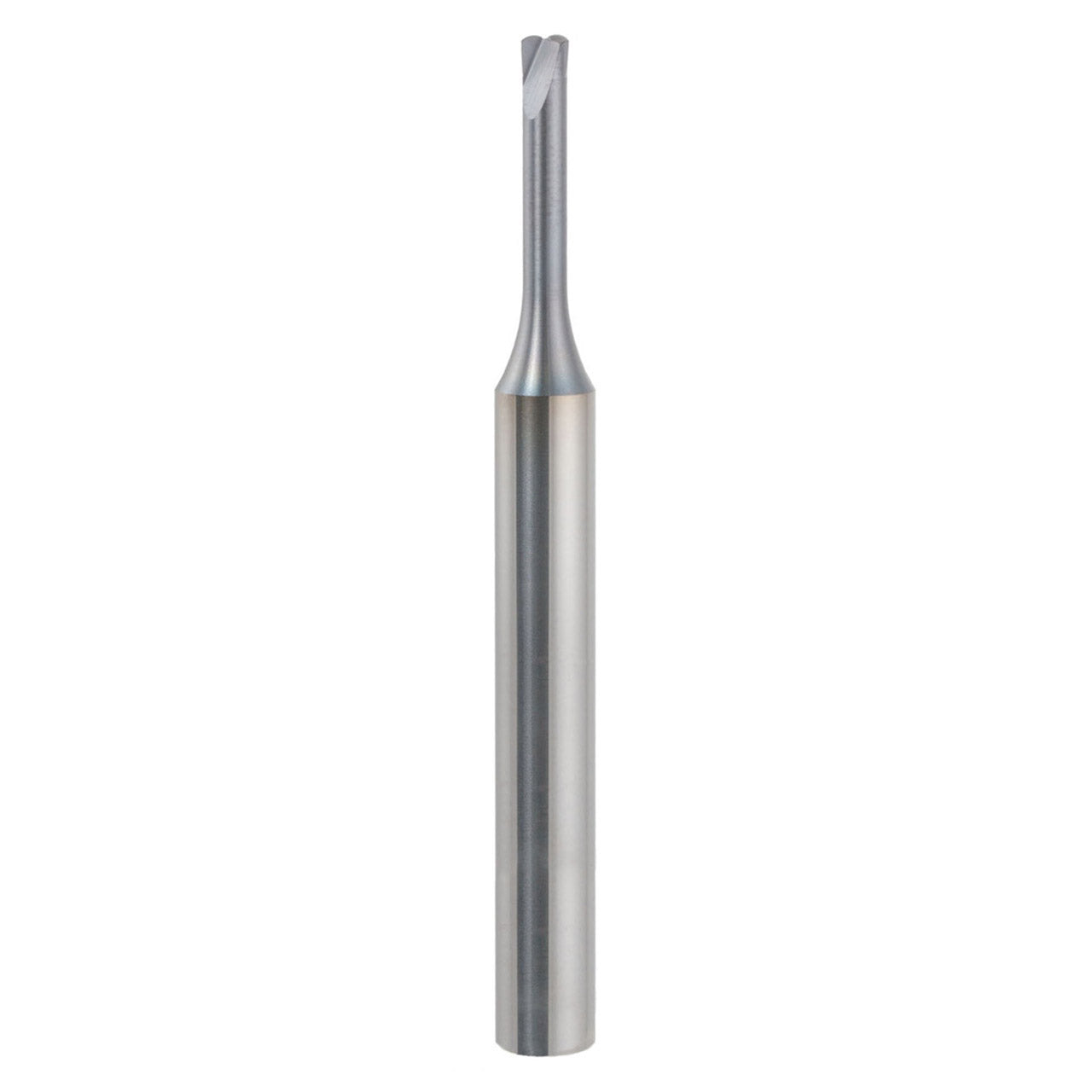

| Product Type | High-Feed End Mill |
