Product Specifications
| Manufacturer Part Number | 02942315 |
| Cutting Diameter (Decimal Inch) | 0.088" |
| Cutting Diameter (mm) | 2.22mm |
| Cutting Diameter 1 (Decimal Inch) | 0.088" |
| Cutting Diameter 1 (mm) | 2.22mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.188" |
| Maximum Cutting Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Neck Diameter (Decimal Inch) | 0.172" |
| Neck Diameter (mm) | 4.37mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.114" |
| Minimum Helical Interpolation Hole Diameter (mm) | 2.89mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.270" |
| Maximum Helical Interpolation Hole Diameter (mm) | 6.86mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.050" |
| Cutting Edge Effective Length (mm) | 1.27mm |
| Neck Length (Decimal Inch) | 0.562" |
| Neck Length (mm) | 14.27mm |
| Neck Length 1 (Decimal Inch) | 0.562" |
| Neck Length 1 (mm) | 14.27mm |
| Minimum Clamping Length (Decimal Inch) | 1.417" |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 1 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.050" |
| Theoretical Cutting Edge Length (mm) | 1.27mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.050" |
| Maximum Depth of Cut (mm) | 1.27mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.050" |
| Curved Cutting Edge Radius (mm) | 1.27mm |
| Corner Radius (Decimal Inch) | 0.050" |
| Corner Radius (mm) | 1.27mm |
| Axial Runout (Decimal Inch) | 0 |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (Decimal Inch) | 0 |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 92 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 92 Degree |
| Neck Angle (Degree) | 1 Degree |
| Collision Angle (Degree) | 3 Degree |
| Flute Helix Angle (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Cutting Geometry Type | MZN410R |
| Cutting Geometry Type Technical | MZN410R |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | AlTiN |

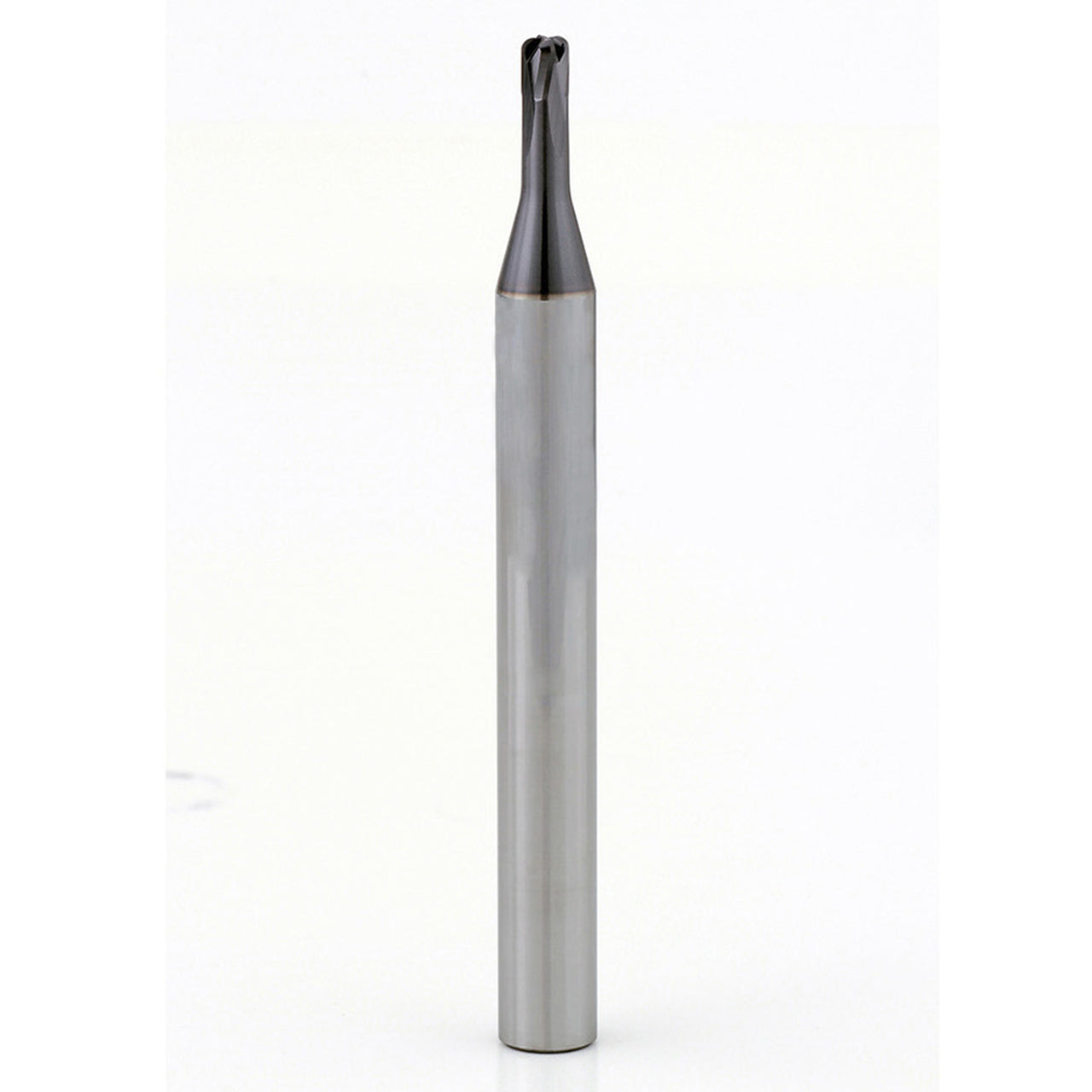

| Product Type | High-Feed End Mill |
