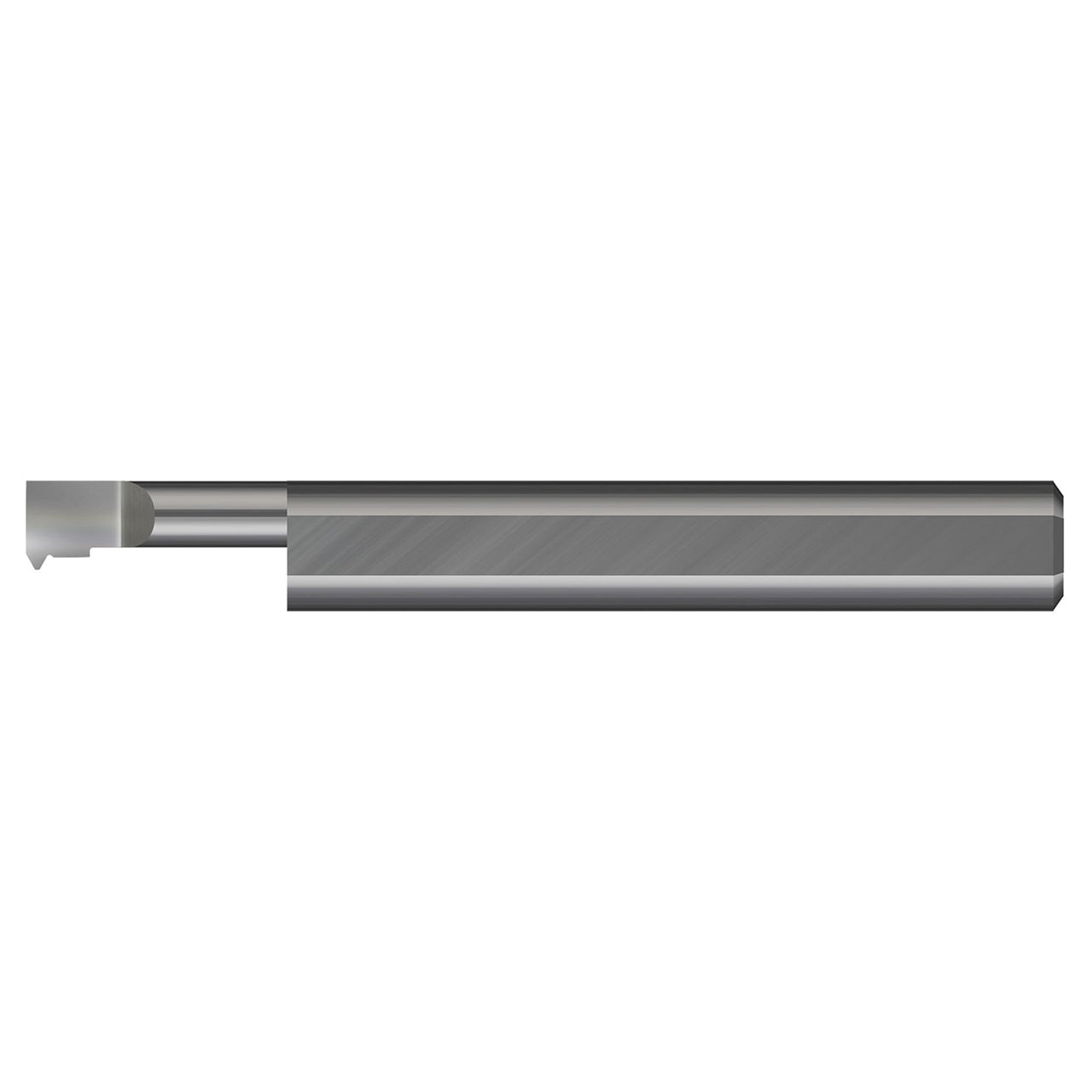

Our Un topping single point threading tools are designed for threading 60 Degree Un pitches in a right hand topping application, and generate a controlled thread height with a reduction in burr formation.
Features:- Topping design generates a controlled thread height with a reduction in burr formation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT-071620-125 |
| Minimum Bore Diameter (Inch) | 0.3720" |
| Maximum Bore Depth (Inch) | 1.250" (1-1/4) |
| Projection (Inch) | 0.0271" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Centerline Offset (Inch) | 0.1625" |
| Offset (Inch) | 0.024" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Neck Diameter (Inch) | 0.3120"(5/16) |
| Thread Size | 7/16-20 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
