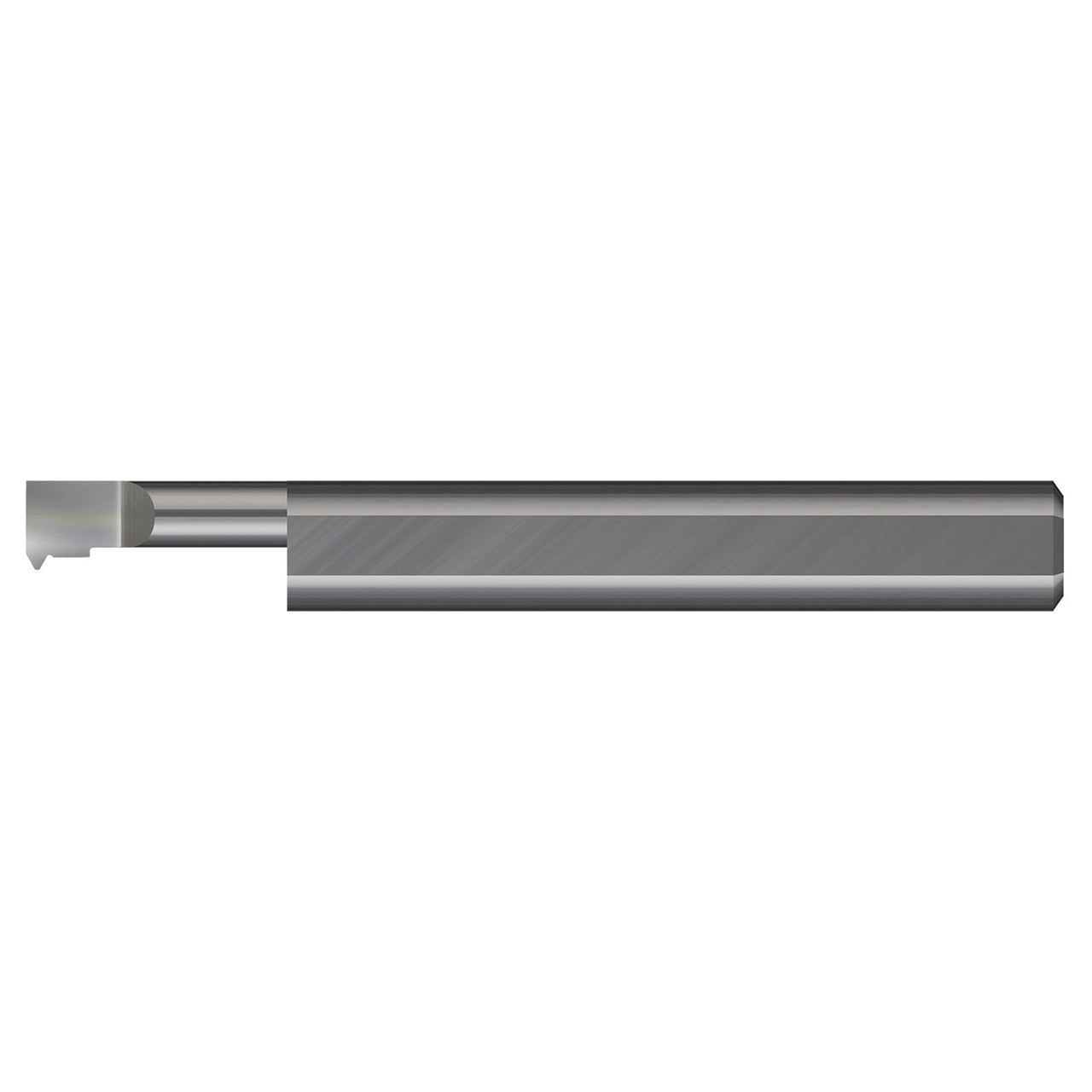

Our Un topping single point threading tools are designed for threading 60 Degree Un pitches in a right hand topping application, and generate a controlled thread height with a reduction in burr formation.
Features:- Topping design generates a controlled thread height with a reduction in burr formation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT-058011-100 |
| Minimum Bore Diameter (Inch) | 0.5120" |
| Maximum Bore Depth (Inch) | 1.000" (1) |
| Projection (Inch) | 0.0492" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Centerline Offset (Inch) | 0.2400" |
| Offset (Inch) | 0.039" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 3.00" (3) |
| Neck Diameter (Inch) | 0.4300" |
| Thread Size | 5/8-11 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
