Micro 100

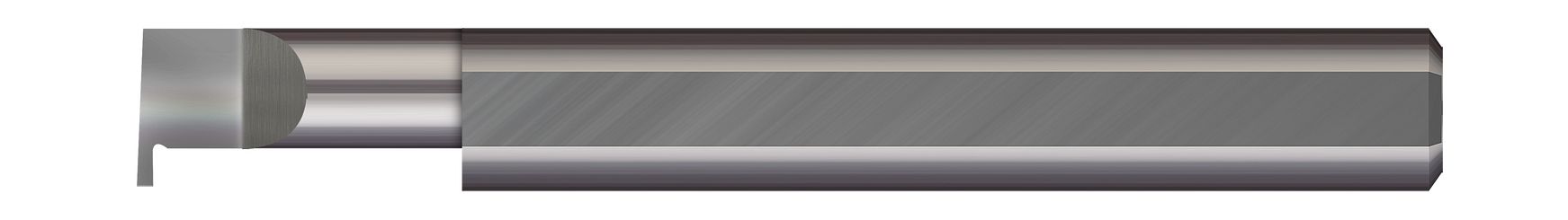

Micro 100 RRM-120-30 | 10.550 mm Minimum Bore Diameter x 30 mm Maximum Bore Depth x 1.190 mm Width x 2.740 mm Projection x 10 mm Shank x 72.0 mm OAL Uncoated Carbide Grooving Tool

Micro 100 RRM-120-30 | 10.550 mm Minimum Bore Diameter x 30 mm Maximum Bore Depth x 1.190 mm Width x 2.740 mm Projection x 10 mm Shank x 72.0 mm OAL Uncoated Carbide Grooving Tool

SKU: 25130994

$66.75 USD
$66.75 USD $66.75 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Micro 100's RR / RRM product line of right hand retaining ring grooving tools is offered fully stocked in uncoated, TiN coating, or AlTiN coating options for added lubricity and increased wear resistance.

  • Designed for generating retaining ring grooves
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (mm) 10.550 mm
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (mm) 30 mm
Projection (mm) 2.740 mm
Shank Diameter (mm) 10 mm
Centerline Offset (mm) 5 mm
Face Dimension 0.20 mm
Metric (Yes/No) Yes
Neck Diameter (mm) 7.110 mm
Overall Length (mm) 72.0 mm
Split Length (mm) 4.70 mm
Tooth Width (mm) 1.190 mm
