Micro 100

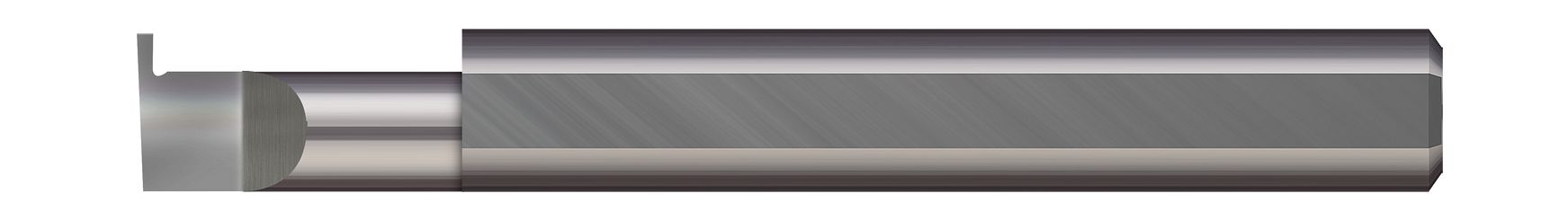

Micro 100 RRL-038-4 | 0.3340" Minimum Bore Diameter x 1/4" Maximum Bore Depth x 0.0380" Width x 0.1000" Projection x 5/16" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

Micro 100 RRL-038-4 | 0.3340" Minimum Bore Diameter x 1/4" Maximum Bore Depth x 0.0380" Width x 0.1000" Projection x 5/16" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

SKU: 25130843

$49.95 USD
$49.95 USD $49.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Designed for generating retaining ring grooves in left hand turning applications, Micro 100's solid carbide left hand retaining ring grooving tools features a sharp corner profile and a lockdown flat.

  • Designed for generating retaining ring grooves in a left hand turning application
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3340"
Hand Direction Left Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.250" (1/4)
Projection (Inch) 0.1000"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1563" (5/32)
Face Dimension 0.156" (5/32)
Neck Diameter (Inch) 0.2070"
Overall Length (Inch) 2.50" (2-1/2)
Split Length (Inch) 0.160"
Tooth Width (Inch) 0.0380"
