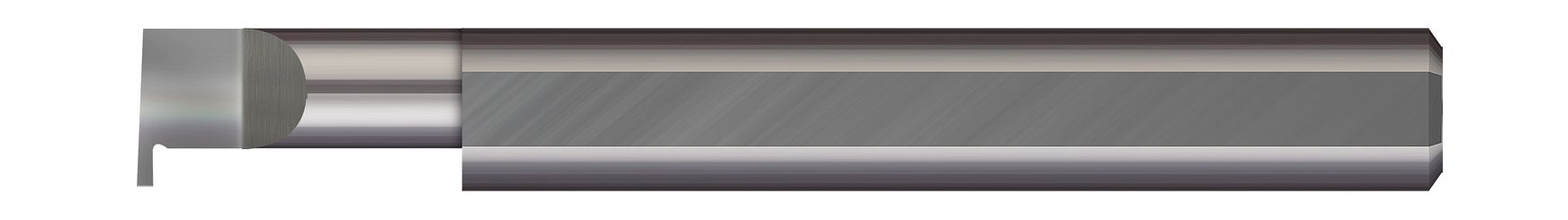

Micro 100's RR / RRM product line of right hand retaining ring grooving tools is offered fully stocked in uncoated, TiN coating, or AlTiN coating options for added lubricity and increased wear resistance.
- Designed for generating retaining ring grooves
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Sharp corner profile
- Lockdown flat automatically locates tool on center
- Coating options provide added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.5220" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 1.500" (1-1/2) |
| Projection (Inch) | 0.1500" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Centerline Offset (Inch) | 0.2500" (1/4) |
| Face Dimension | 0.250" (1/4) |
| Neck Diameter (Inch) | 0.3450" |
| Overall Length (Inch) | 3" (3) |
| Split Length (Inch) | 0.375" (3/8) |
| Tooth Width (Inch) | 0.2500" (1/4) |
