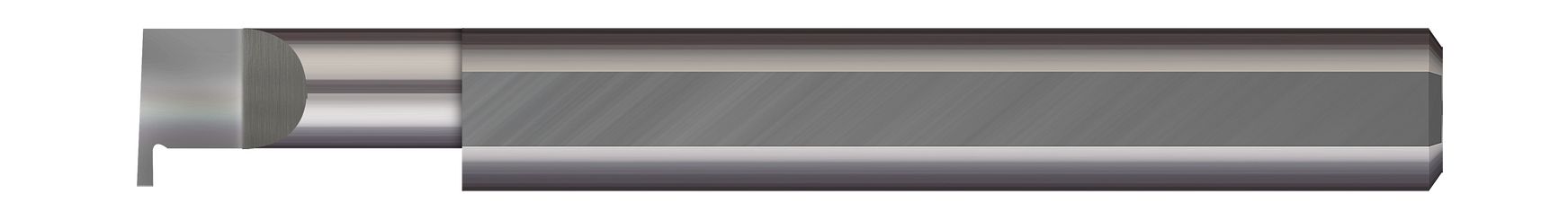

Micro 100's RR / RRM product line of right hand retaining ring grooving tools is offered fully stocked in uncoated, TiN coating, or AlTiN coating options for added lubricity and increased wear resistance.
- Designed for generating retaining ring grooves
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Sharp corner profile
- Lockdown flat automatically locates tool on center
- Coating options provide added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.3970" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.375" (3/8) |
| Projection (Inch) | 0.1000" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Centerline Offset (Inch) | 0.1875" (3/16) |
| Face Dimension | 0.188" (3/16) |
| Neck Diameter (Inch) | 0.2700" |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Split Length (Inch) | 0.210" |
| Tooth Width (Inch) | 0.0690" |
