Micro 100

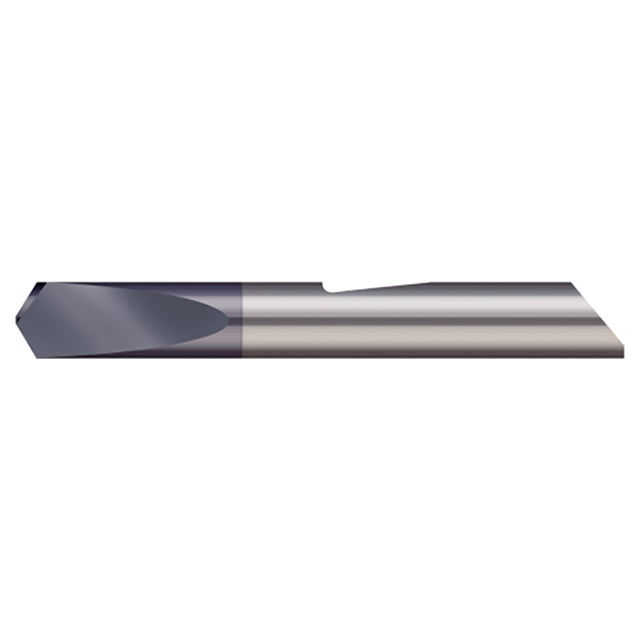

Micro 100 QSD-312X | 0.3125" Diameter x 0.3125" Shank x 1.353" Length x 2-1/2" OAL AlTiN Coated Carbide Quick Change Spade Drill

Micro 100 QSD-312X | 0.3125" Diameter x 0.3125" Shank x 1.353" Length x 2-1/2" OAL AlTiN Coated Carbide Quick Change Spade Drill

SKU: 10104372

$59.20 USD
$59.20 USD $59.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Product Specifications
Drill Diameter (Inch) 5/16"
Drill Diameter (Decimal Inch) 0.3125"
Finish/Coating AlTiN
Max Bore Depth (Decimal Inch) 1.272"
Flute Length (Decimal Inch) 0.860"
Flute Taper Included 18
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Length from Holder (Decimal Inch) 1.353"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Point Angle 118 Degree
Web Thickness (Decimal Inch) 0.040"
