Micro 100

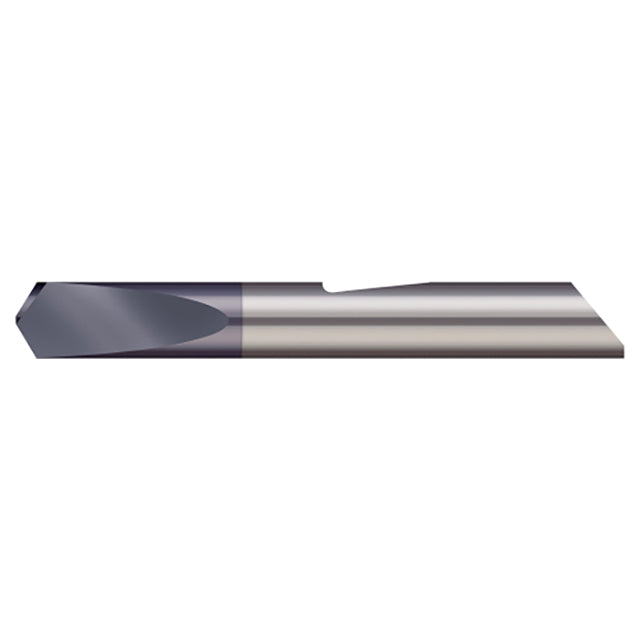

Micro 100 QSD-093X | 0.0938" Diameter x 0.1875" Shank x 0.590" Length x 1-1/2" OAL AlTiN Coated Carbide Quick Change Spade Drill

Micro 100 QSD-093X | 0.0938" Diameter x 0.1875" Shank x 0.590" Length x 1-1/2" OAL AlTiN Coated Carbide Quick Change Spade Drill

SKU: 10104362

$24.45 USD
$24.45 USD $24.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Product Specifications
Drill Diameter (Inch) 0.0938"
Finish/Coating AlTiN
Max Bore Depth (Decimal Inch) 1.035"
Flute Length (Decimal Inch) 0.445"
Flute Taper Included 10
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Length from Holder (Decimal Inch) 0.590"
Overall Length (Inch) 1-1/2"
Overall Length (Decimal Inch) 1.50"
Point Angle 118 Degree
Web Thickness (Decimal Inch) 0.016"
