Micro 100

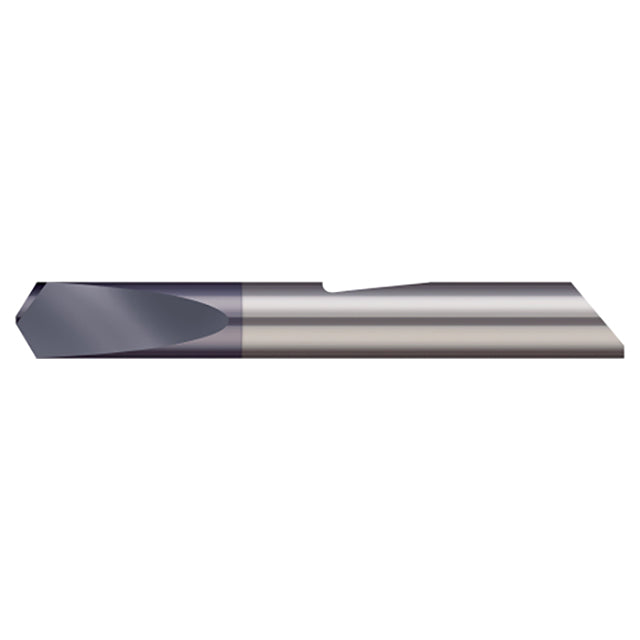

Micro 100 QSD-031X | 0.0312" Diameter x 0.1875" Shank x 0.340" Length x 1-1/4" OAL AlTiN Coated Carbide Quick Change Spade Drill

Micro 100 QSD-031X | 0.0312" Diameter x 0.1875" Shank x 0.340" Length x 1-1/4" OAL AlTiN Coated Carbide Quick Change Spade Drill

SKU: 10104358

Precio habitual $23.00 USD
Precio habitual $23.00 USD Precio de oferta $23.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Product Specifications
Drill Diameter (Inch) 1/32"
Drill Diameter (Decimal Inch) 0.0312"
Finish/Coating AlTiN
Max Bore Depth (Decimal Inch) 1.035"
Flute Length (Decimal Inch) 0.202"
Flute Taper Included 6
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Length from Holder (Decimal Inch) 0.340"
Overall Length (Inch) 1-1/4"
Overall Length (Decimal Inch) 1.25"
Point Angle 118 Degree
Web Thickness (Decimal Inch) 0.010"
