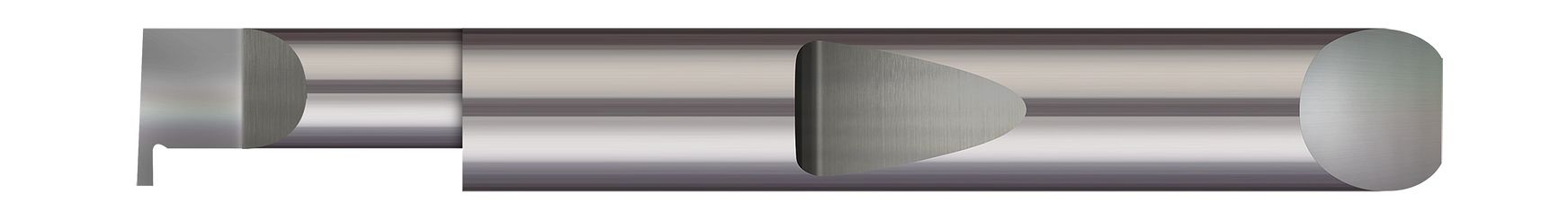

• QRR-030-1000-370.jpg
1 1

Micro 100

Micro 100 QRR-030-1000-370 | 0.0300" Width x 0.0500" Projection x 0.3920" Minimum Bore Diameter x 1" Maximum Bore Depth x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

Micro 100 QRR-030-1000-370 | 0.0300" Width x 0.0500" Projection x 0.3920" Minimum Bore Diameter x 1" Maximum Bore Depth x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

SKU: 25185596

$76.00 USD
$76.00 USD $76.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Designed for generating retaining ring grooves in bores .134" and larger, Micro 100's QRR, its line of retaining ring grooving tools.

  • Designed for generating retaning ring grooves in bores .134" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3920"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1" (1)
Projection (Inch) 0.0500"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1825"
Length from Holder 1.353"
Neck Diameter (Inch) 0.3200"
Overall Length (Inch) 2.50" (2-1/2)
Tooth Width (Inch) 0.0300"
