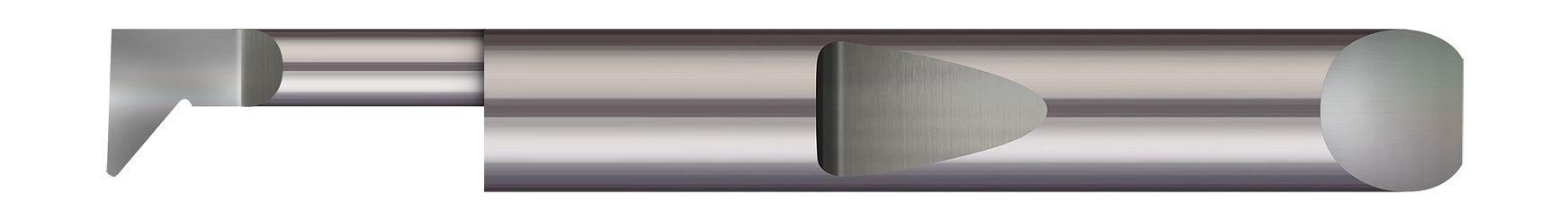

Accomplish radial profiling, fine finishing, and even thread relief, with the QPR, Micro 100's line of tooling designed with split geometry for maximum rigidity and a coolant fed enabled shank design.
- Designed for radial profiling
- Excellent choice for fine finishing
- Can be used in thread relief applications
- Split geometry makes the tool as rigid as possible
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1340" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.375" (3/8) |
| Projection (Inch) | 0.0500" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Centerline Offset (Inch) | 0.0263" |
| Corner Radius (Inch) | 0.008" |
| Length from Holder | 0.590" |
| Neck Diameter (Inch) | 0.0700" |
| Overall Length (Inch) | 1.50" (1-1/2) |
