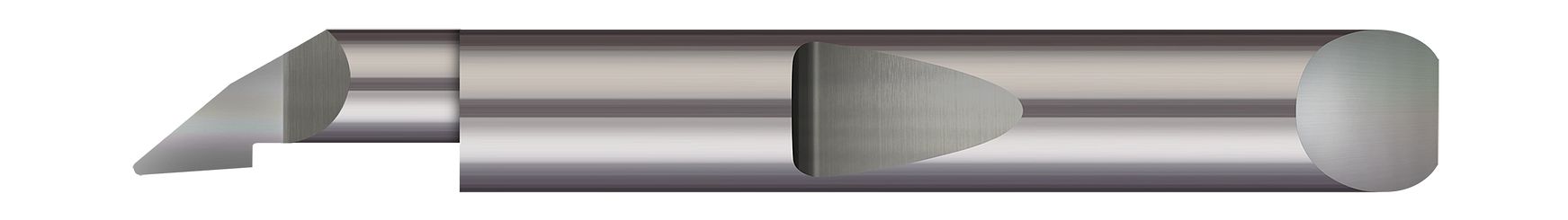

The unique design of this tool maximizes tool versatility and part feature creation, and has a polished split face for improved edge retention and chip evacuation while reducing galling.
- Designed for both radial and axial profiling
- Unique design maximizes tool versitilty and part feature creation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.3800" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.750" (3/4) |
| Projection (Inch) | 0.0300" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Centerline Offset (Inch) | 0.1725" |
| Corner Radius (Inch) | 0.008" |
| Length from Holder | 0.853" |
| Neck Diameter (Inch) | 0.3300" |
| Overall Length (Inch) | 2" (2) |
