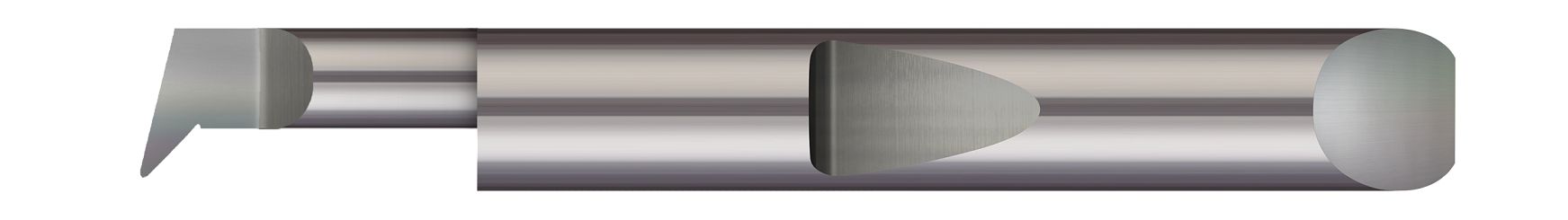

Designed for both radial and axial profiling, this tool is an excellent choice for fine finishing applications. Offered uncoated, or with AlTiN coating for added lubricity and increased wear resistance in difficult to machine materials.
- Designed for both radial and axial profiling
- Unique design maximizes tool versatility and part feature creation
- Excellent choice for fine finishing
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.2180" (7/32) |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.750" (3/4) |
| Projection (Inch) | 0.0600" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Centerline Offset (Inch) | 0.0750" |
| Corner Radius (Inch) | 0.008" |
| Length from Holder | 0.853" |
| Neck Diameter (Inch) | 0.1400" (9/64) |
| Overall Length (Inch) | 2" (2) |
