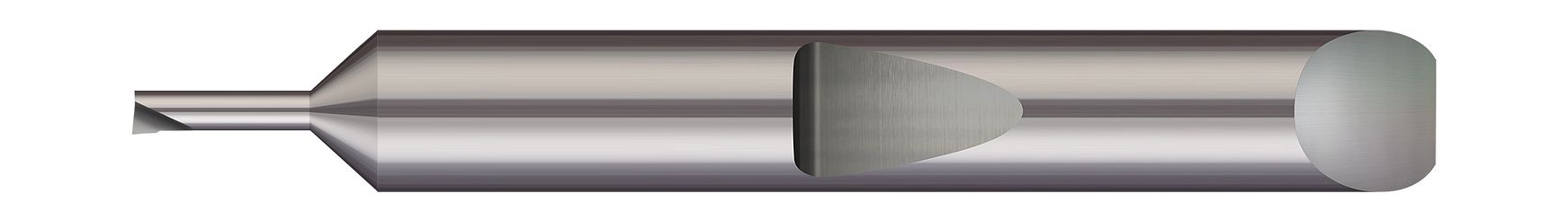

Designed for facing and boring application in bores .015" and larger, miniature right hand boring tools feature a polished split face for improved edge retention and chip evacuation while reducing galling.
- Designed for facing and boring applications in bores .015" and larger
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- On center neck design allows for static and live/rotating applications
- Coolant fed enabled shank design
- Sharp corner profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.0365" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.100" |
| Projection (Inch) | 0.0035" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Centerline Offset (Inch) | 0.0200" |
| Length from Holder | 0.590" |
| Neck Diameter (Inch) | 0.0320" |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Rotational Min Bore Diameter (Inch) | 0.040" |
| Tooth Width (Inch) | 0.0250" |
