Product Specifications
| Manufacturer Part Number | QLTR-495-24 |
| Minimum Bore Diameter (Decimal Inch) | 0.517" |
| Head Width (Decimal Inch) | 0.495" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.500" |
| Maximum Bore Depth (Inch) | 1-1/2" |
| Projection (Decimal Inch) | 0.125" |
| Projection (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Centerline Offset | 0.2450" |
| Corner Radius (Decimal Inch) | 0.005" |
| Length from Holder (Decimal Inch) | 1.540" |
| Neck Diameter (Decimal Inch) | 0.370" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Tooth Width (Decimal Inch) | 0.156" |
| Tooth Width (Inch) | 5/32" |
| Coating | Uncoated |

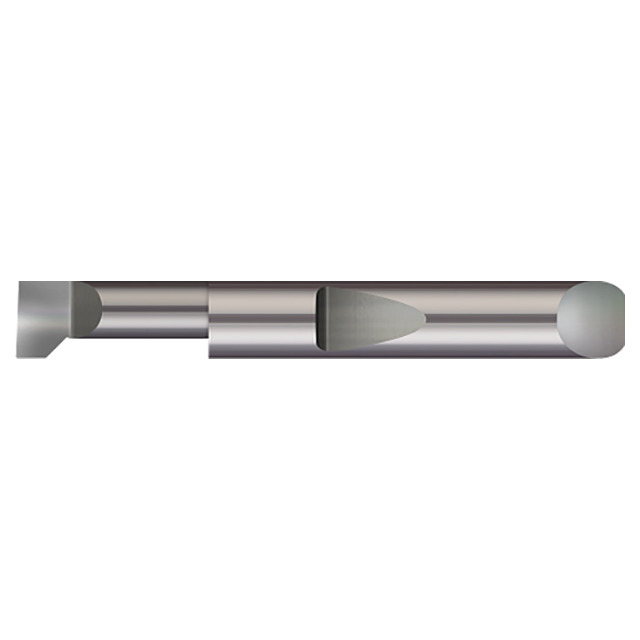

| Product Type | Quick Change Threading Tool - Radius |
