Product Specifications
| Manufacturer Part Number | QLTR-245-20X |
| Minimum Bore Diameter (Decimal Inch) | 0.267" |
| Head Width (Decimal Inch) | 0.245" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.250" |
| Maximum Bore Depth (Inch) | 1-1/4" |
| Projection (Decimal Inch) | 0.050" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.1200" |
| Corner Radius (Decimal Inch) | 0.005" |
| Length from Holder (Decimal Inch) | 1.853" |
| Neck Diameter (Decimal Inch) | 0.195" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Tooth Width (Decimal Inch) | 0.094" |
| Coating | AlTiN |

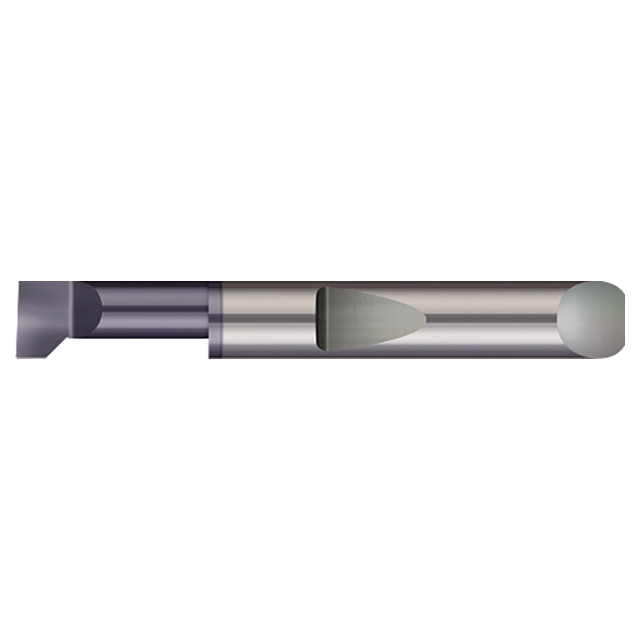

| Product Type | Quick Change Threading Tool - Radius |
