Product Specifications
| Manufacturer Part Number | QLTR-094-6X |
| Minimum Bore Diameter (Decimal Inch) | 0.104" |
| Head Width (Decimal Inch) | 0.094" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.375" |
| Maximum Bore Depth (Inch) | 3/8" |
| Projection (Decimal Inch) | 0.040" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset | 0.0002" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.054" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Tooth Width (Decimal Inch) | 0.049" |
| Coating | AlTiN |

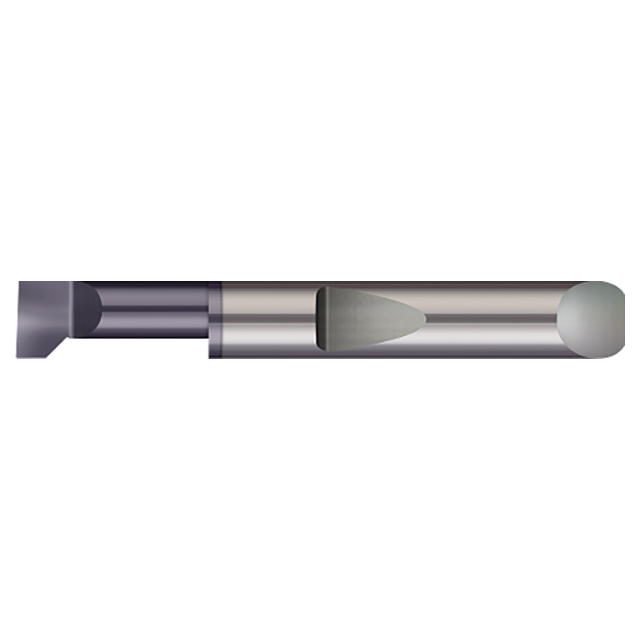

| Product Type | Quick Change Threading Tool - Radius |
