Product Specifications
| Manufacturer Part Number | QITL-1801000X |
| Minimum Bore Diameter (Decimal Inch) | 0.202" |
| Head Width (Decimal Inch) | 0.180" |
| Cutting Direction | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.040" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.0550" |
| Offset (Decimal Inch) | 0.029" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.140" |
| Neck Diameter (Inch) | 9/64" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Thread Size | 14-56" |
| Thread Per Inch | 14-56 TPI |
| Coating | AlTiN |

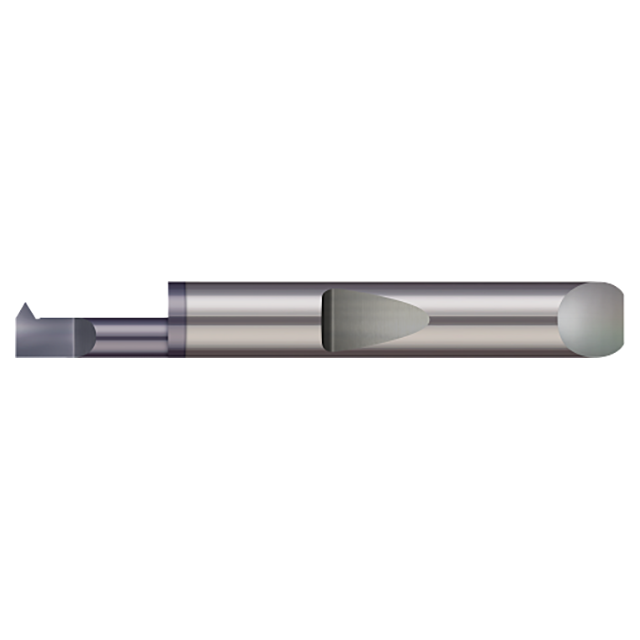

| Product Type | Quick Change Threading Tool |
