Micro 100

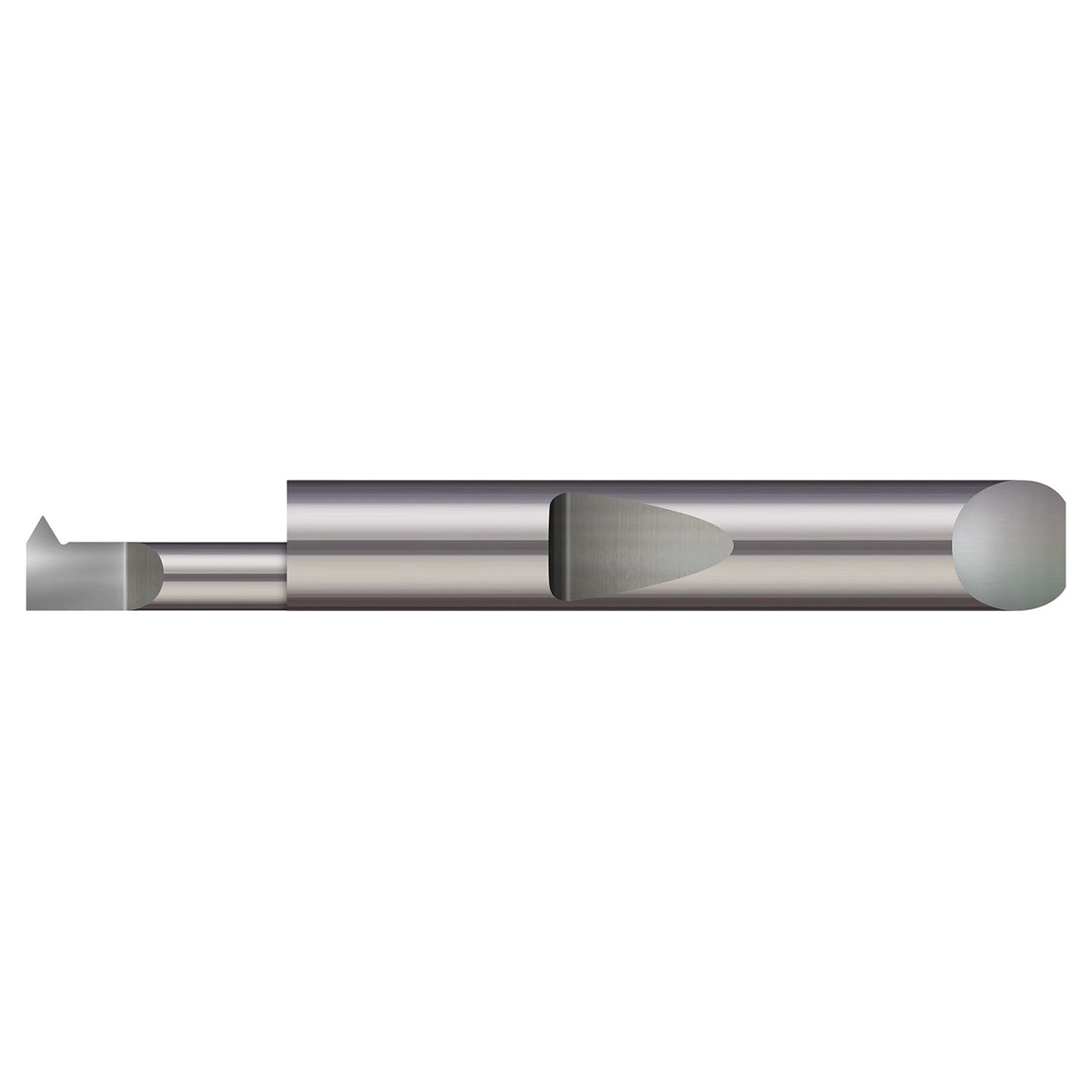

Micro 100 QITL-160750 | 14-56 Thread 0.1820" Minimum Bore Diameter x 0.750" (3/4) Maximum Bore Depth x 0.0400" Projection x 0.002" Radius Uncoated Left Hand Quick Change Threading Tool

Micro 100 QITL-160750 | 14-56 Thread 0.1820" Minimum Bore Diameter x 0.750" (3/4) Maximum Bore Depth x 0.0400" Projection x 0.002" Radius Uncoated Left Hand Quick Change Threading Tool

SKU: 25236963

$47.45 USD
$47.45 USD $47.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60 Degree) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number QITL-160750
Minimum Bore Diameter (Inch) 0.1820"
Maximum Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0400"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0662"
Offset (Inch) 0.023"
Corner Radius (Inch) 0.002"
Length from Holder (Inch) 1.090"
Overall Length (Inch) 2.00" (2)
Neck Diameter (Inch) 0.1150"
Thread Size 14-56
Hand Direction Left Hand
Coating Uncoated
