Product Specifications
| Manufacturer Part Number | QITL-100250 |
| Minimum Bore Diameter (Decimal Inch) | 0.110" |
| Minimum Bore Diameter (mm) | 2.80mm |
| Head Width (Decimal Inch) | 0.100" |
| Cutting Direction | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.250" |
| Maximum Bore Depth (Inch) | 1/4" |
| Projection (Decimal Inch) | 0.025" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset | 0.0062" |
| Offset (Decimal Inch) | 0.018" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.075" |
| Neck Diameter (mm) | 1.90mm |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Thread Size | 24-56" |
| Thread Per Inch | 24-56 TPI |
| Coating | Uncoated |

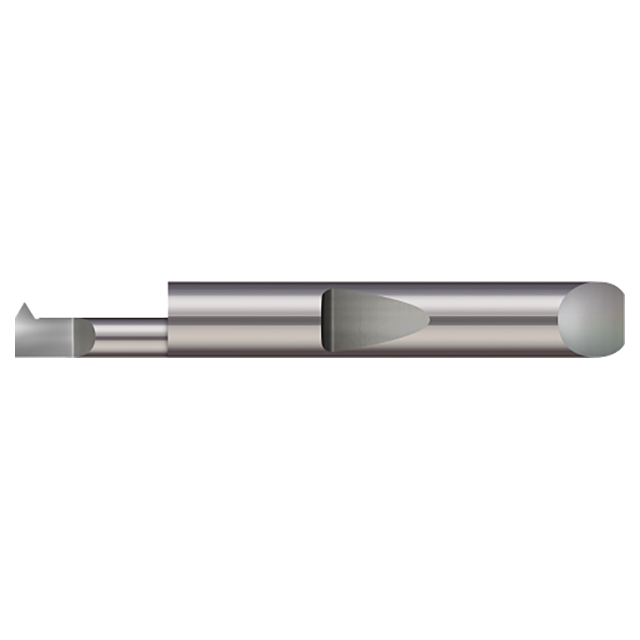

| Product Type | Quick Change Threading Tool |
