Product Specifications
| Manufacturer Part Number | QIT-2301750 |
| Minimum Bore Diameter (Decimal Inch) | 0.2520" |
| Maximum Bore Diameter (Decimal Inch) | 1.750" |
| Maximum Bore Diameter (Inch) | 1-3/4" |
| Projection (Decimal Inch) | 0.0550" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Projection (Decimal Inch) | 5/16" |
| Shank Diameter(mm) | 0.0737" |
| Offset (Decimal Inch) | 0.038" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.853" |
| Neck Diameter (Decimal Inch) | 0.1750" |
| Overall Length (Decimal Inch) | 3.00" |
| Overall Length (Inch) | 3" |
| Thread Size | 10-48" |
| TPI | 10-48 TPI |
| Coating | Uncoated |

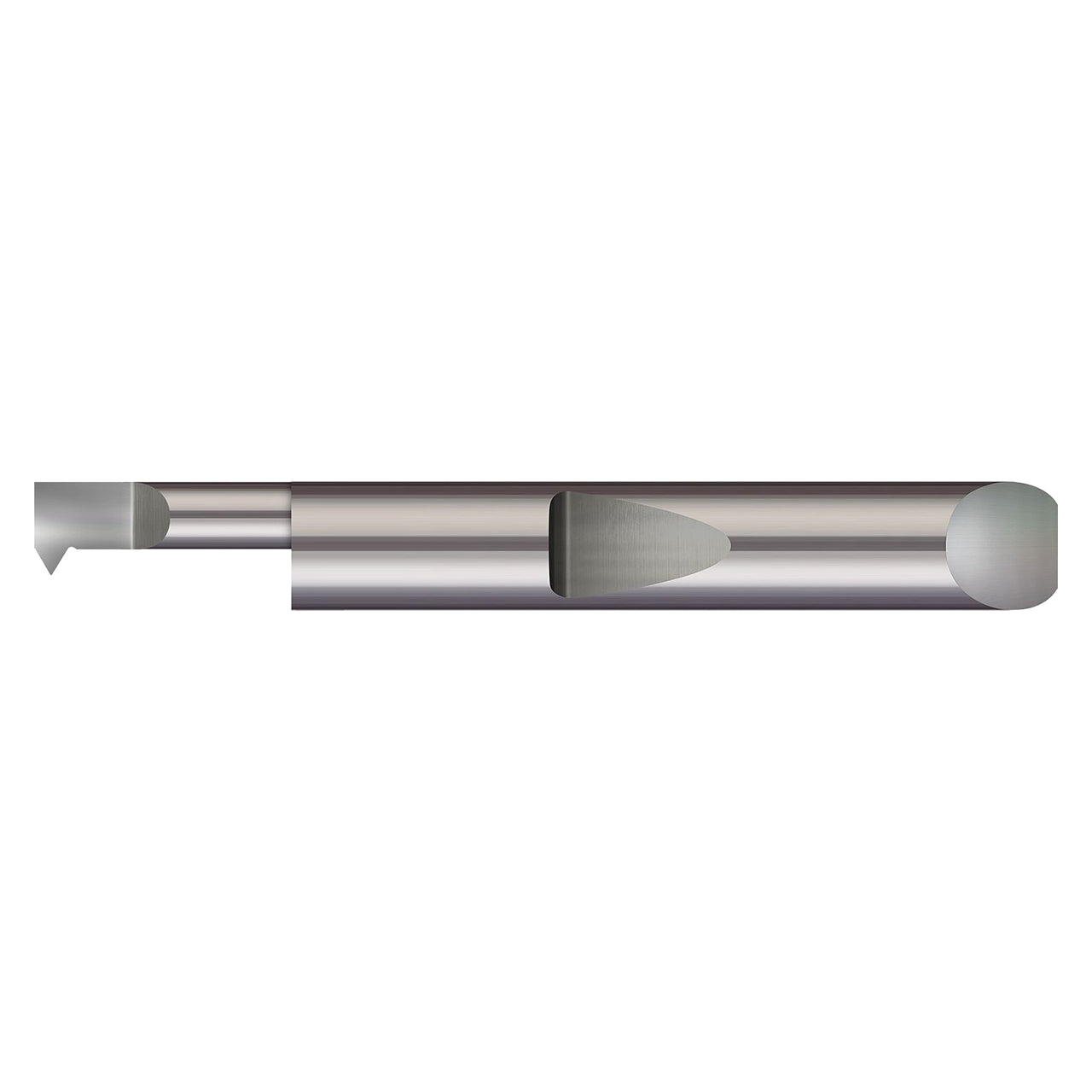

| Product Type | Single Point Threading Tool |
