Product Specifications
| Manufacturer Part Number | QIAT2-750-8 |
| Minimum Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Bore Diameter (Inch) | 1/2" |
| Head Width (Decimal Inch) | 0.478" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.750" |
| Maximum Bore Depth (Inch) | 3/4" |
| Projection (Decimal Inch) | 0.120" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Centerline Offset | 0.2280" |
| Offset (Decimal Inch) | 0.064" |
| Flat Width (Decimal Inch) | 0.041" |
| Length from Holder (Decimal Inch) | 1.040" |
| Neck Diameter (Decimal Inch) | 0.358" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Thread Per Inch | 8 TPI |
| Coating | Uncoated |

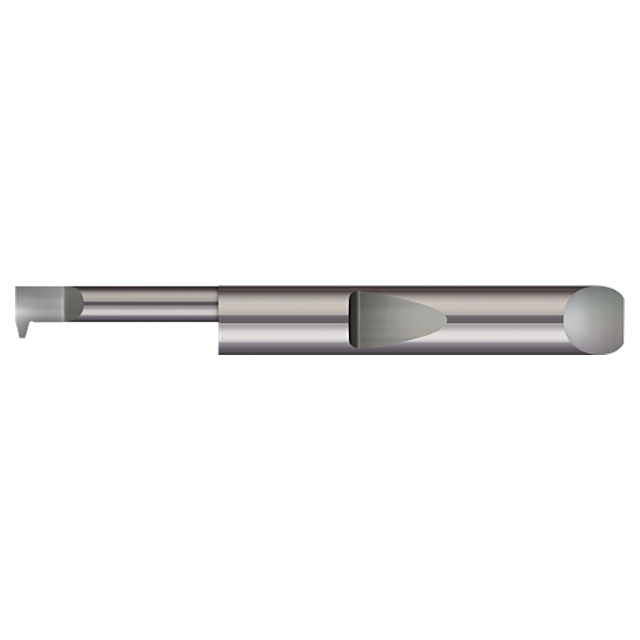

| Product Type | Quick Change Threading Tool - ACME Thread |
