Product Specifications
| Manufacturer Part Number | QIAT2-750-14 |
| Minimum Bore Diameter (Decimal Inch) | 0.241" |
| Head Width (Decimal Inch) | 0.219" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.750" |
| Maximum Bore Depth (Inch) | 3/4" |
| Projection (Decimal Inch) | 0.070" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Shank Diameter (Inch) | 5/16" |
| Centerline Offset | 0.0627" |
| Offset (Decimal Inch) | 0.030" |
| Flat Width (Decimal Inch) | 0.024" |
| Length from Holder (Decimal Inch) | 0.853" |
| Neck Diameter (Decimal Inch) | 0.149" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Thread Per Inch | 14 TPI |
| Coating | Uncoated |

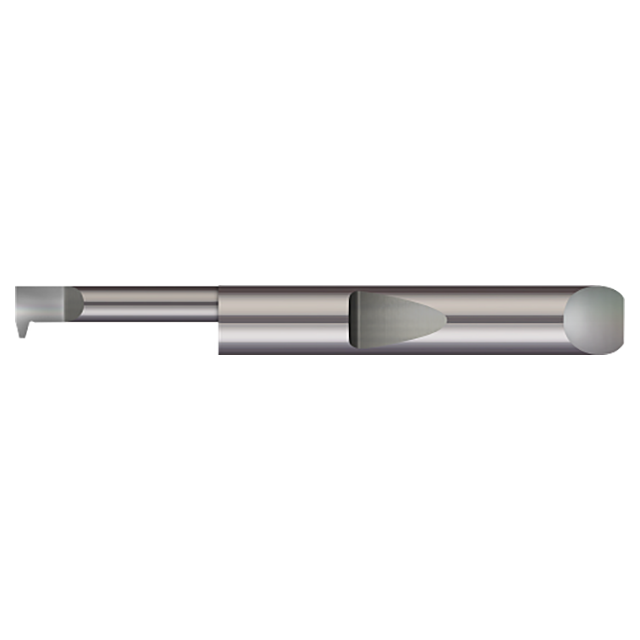

| Product Type | Quick Change Threading Tool - ACME Thread |
