Product Specifications
| Manufacturer Part Number | QIAT2-2000-10 |
| Minimum Bore Diameter (Decimal Inch) | 0.400" |
| Head Width (Decimal Inch) | 0.378" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.000" |
| Maximum Bore Depth (Inch) | 2" |
| Projection (Decimal Inch) | 0.120" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Centerline Offset | 0.1280" |
| Offset (Decimal Inch) | 0.060" |
| Flat Width (Decimal Inch) | 0.032" |
| Length from Holder (Decimal Inch) | 2.040" |
| Neck Diameter (Decimal Inch) | 0.258" |
| Overall Length (Decimal Inch) | 3.500" |
| Overall Length (Inch) | 3-1/2" |
| Thread Per Inch | 10 TPI |
| Coating | Uncoated |

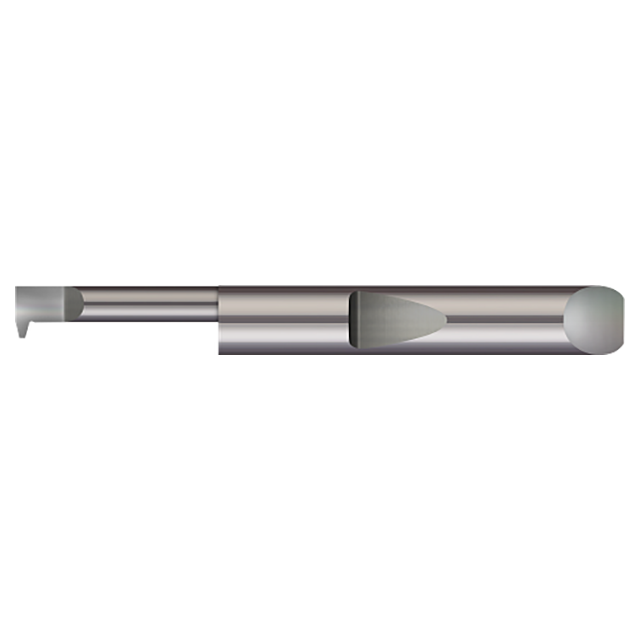

| Product Type | Quick Change Threading Tool - ACME Thread |
