Product Specifications
| Manufacturer Part Number | QIAT2-1800-12 |
| Minimum Bore Diameter (Decimal Inch) | 0.291" |
| Head Width (Decimal Inch) | 0.269" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.800" |
| Projection (Decimal Inch) | 0.085" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Shank Diameter (Inch) | 5/16" |
| Centerline Offset | 0.1127" |
| Offset (Decimal Inch) | 0.049" |
| Flat Width (Decimal Inch) | 0.028" |
| Length from Holder (Decimal Inch) | 2.353" |
| Neck Diameter (Decimal Inch) | 0.184" |
| Overall Length (Decimal Inch) | 3.500" |
| Overall Length (Inch) | 3-1/2" |
| Thread Per Inch | 12 TPI |
| Coating | Uncoated |

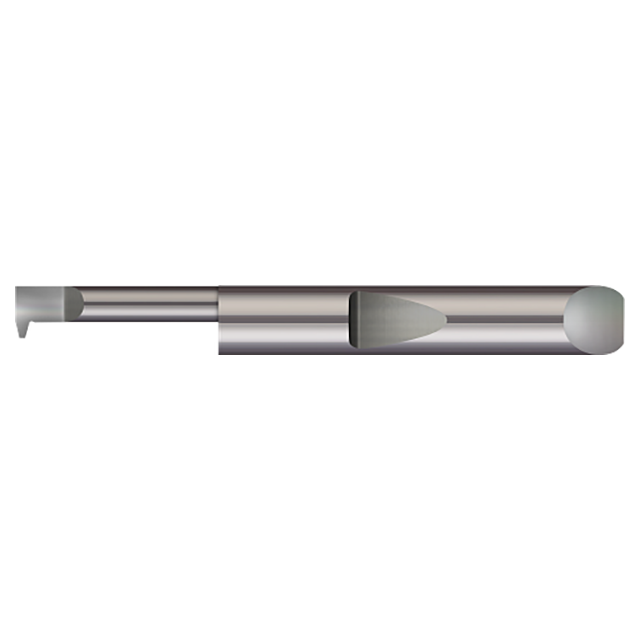

| Product Type | Quick Change Threading Tool - ACME Thread |
